PDF Publication Title:

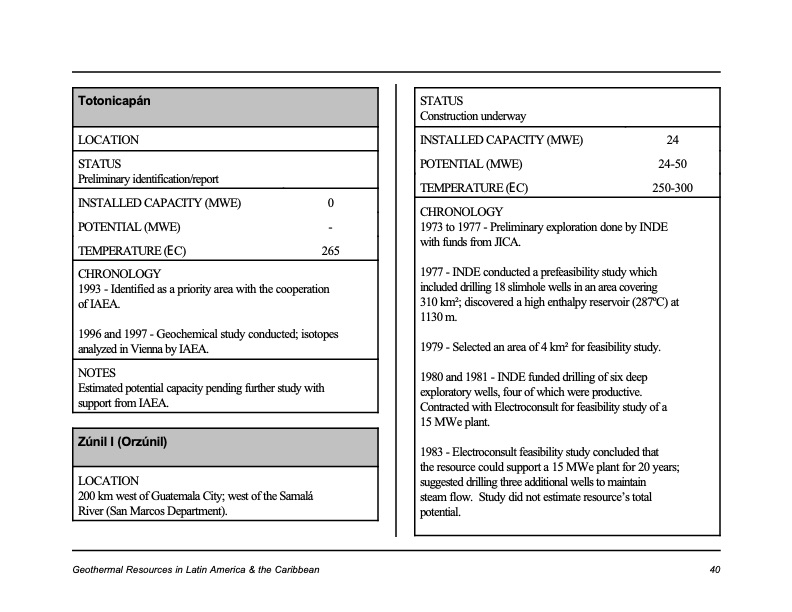

Text from PDF Page: 043
Totonicapán LOCATION INSTALLED CAPACITY (MWE) POTENTIAL (MWE) TEMPERATURE (EC) INSTALLED CAPACITY (MWE) POTENTIAL (MWE) TEMPERATURE (EC) 24 24-50 250-300 STATUS Preliminary identification/report Geothermal Resources in Latin America & the Caribbean 40 0 - 265 STATUS Construction underway CHRONOLOGY 1973 to 1977 - Preliminary exploration done by INDE with funds from JICA. 1977 - INDE conducted a prefeasibility study which included drilling 18 slimhole wells in an area covering 310 km2; discovered a high enthalpy reservoir (287oC) at 1130 m. 1979 - Selected an area of 4 km2 for feasibility study. 1980 and 1981 - INDE funded drilling of six deep exploratory wells, four of which were productive. Contracted with Electroconsult for feasibility study of a 15 MWe plant. 1983 - Electroconsult feasibility study concluded that the resource could support a 15 MWe plant for 20 years; suggested drilling three additional wells to maintain steamflow. Studydidnotestimateresource’stotal potential. CHRONOLOGY 1993 - Identified as a priority area with the cooperation of IAEA. 1996 and 1997 - Geochemical study conducted; isotopes analyzed in Vienna by IAEA. NOTES Estimated potential capacity pending further study with support from IAEA. Zúnil I (Orzúnil) LOCATION 200 km west of Guatemala City; west of the Samalá River (San Marcos Department).PDF Image | Geothermal Resources in the Caribbean and Latin America
PDF Search Title:
Geothermal Resources in the Caribbean and Latin AmericaOriginal File Name Searched:
georeslac.pdfDIY PDF Search: Google It | Yahoo | Bing
