PDF Publication Title:
Text from PDF Page: 052

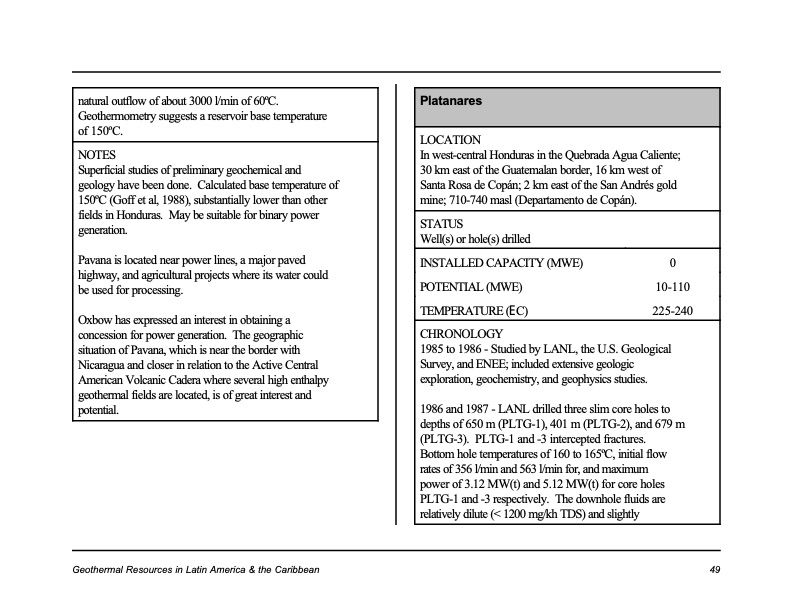

natural outflow of about 3000 l/min of 60oC. Geothermometry suggests a reservoir base temperature of 150oC. NOTES Superficial studies of preliminary geochemical and geologyhavebeendone. Calculatedbasetemperatureof 150oC (Goff et al, 1988), substantially lower than other fields in Honduras. May be suitable for binary power generation. Pavana is located near power lines, a major paved highway, and agricultural projects where its water could be used for processing. Oxbow has expressed an interest in obtaining a concessionforpowergeneration. Thegeographic situation of Pavana, which is near the border with Nicaragua and closer in relation to the Active Central American Volcanic Cadera where several high enthalpy geothermal fields are located, is of great interest and potential. Platanares LOCATION In west-central Honduras in the Quebrada Agua Caliente; 30 km east of the Guatemalan border, 16 km west of Santa Rosa de Copán; 2 km east of the San Andrés gold mine; 710-740 masl (Departamento de Copán). STATUS Well(s) or hole(s) drilled INSTALLED CAPACITY (MWE) POTENTIAL (MWE) TEMPERATURE (EC) 0 10-110 225-240 CHRONOLOGY 1985 to 1986 - Studied by LANL, the U.S. Geological Survey, and ENEE; included extensive geologic exploration, geochemistry, and geophysics studies. 1986 and 1987 - LANL drilled three slim core holes to depths of 650 m (PLTG-1), 401 m (PLTG-2), and 679 m (PLTG-3). PLTG-1and-3interceptedfractures. Bottom hole temperatures of 160 to 165oC, initial flow rates of 356 l/min and 563 l/min for, and maximum power of 3.12 MW(t) and 5.12 MW(t) for core holes PLTG-1and-3respectively. Thedownholefluidsare relatively dilute (< 1200 mg/kh TDS) and slightly Geothermal Resources in Latin America & the Caribbean 49PDF Image | Geothermal Resources in the Caribbean and Latin America
PDF Search Title:
Geothermal Resources in the Caribbean and Latin AmericaOriginal File Name Searched:
georeslac.pdfDIY PDF Search: Google It | Yahoo | Bing
