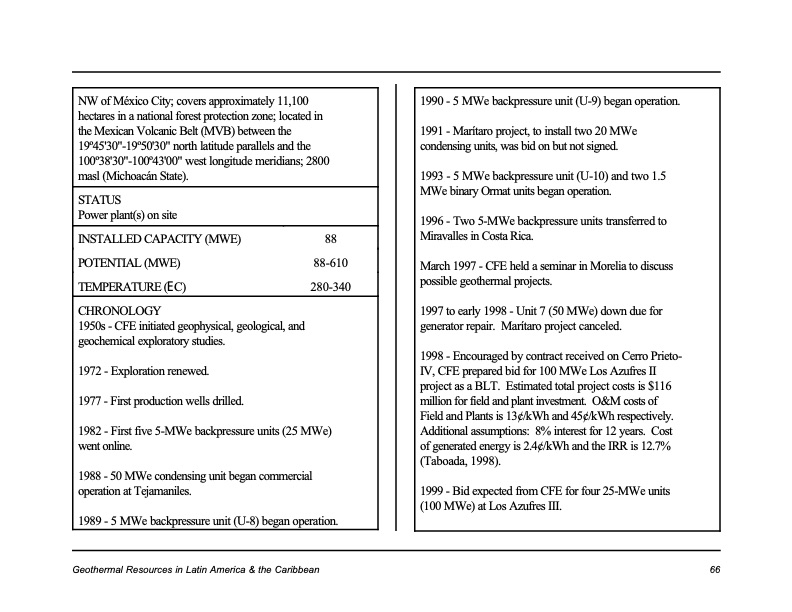

NW of México City; covers approximately 11,100 hectares in a national forest protection zone; located in the Mexican Volcanic Belt (MVB) between the 19o45'30"-19o50'30" north latitude parallels and the 100o38'30"-100o43'00" west longitude meridians; 2800 masl (Michoacán State). STATUS Power plant(s) on site 1990 - 5 MWe backpressure unit (U-9) began operation. 1991 - Marítaro project, to install two 20 MWe condensing units, was bid on but not signed. 1993 - 5 MWe backpressure unit (U-10) and two 1.5 MWe binary Ormat units began operation. 1996 - Two 5-MWe backpressure units transferred to Miravalles in Costa Rica. March 1997 - CFE held a seminar in Morelia to discuss possible geothermal projects. 1997 to early 1998 - Unit 7 (50 MWe) down due for generatorrepair. Marítaroprojectcanceled. 1998 - Encouraged by contract received on Cerro Prieto- IV, CFE prepared bid for 100 MWe Los Azufres II projectasaBLT. Estimatedtotalprojectcostsis$116 million for field and plant investment. O&M costs of Field and Plants is 13¢/kWh and 45¢/kWh respectively. Additionalassumptions: 8%interestfor12years. Cost of generated energy is 2.4¢/kWh and the IRR is 12.7% (Taboada, 1998). 1999 - Bid expected from CFE for four 25-MWe units (100 MWe) at Los Azufres III. INSTALLED CAPACITY (MWE) POTENTIAL (MWE) TEMPERATURE (EC) 88 88-610 280-340 CHRONOLOGY 1950s - CFE initiated geophysical, geological, and geochemical exploratory studies. 1972 - Exploration renewed. 1977 - First production wells drilled. 1982 - First five 5-MWe backpressure units (25 MWe) went online. 1988 - 50 MWe condensing unit began commercial operation at Tejamaniles. 1989 - 5 MWe backpressure unit (U-8) began operation. Geothermal Resources in Latin America & the Caribbean 66PDF Image | Geothermal Resources in the Caribbean and Latin America
