PDF Publication Title:

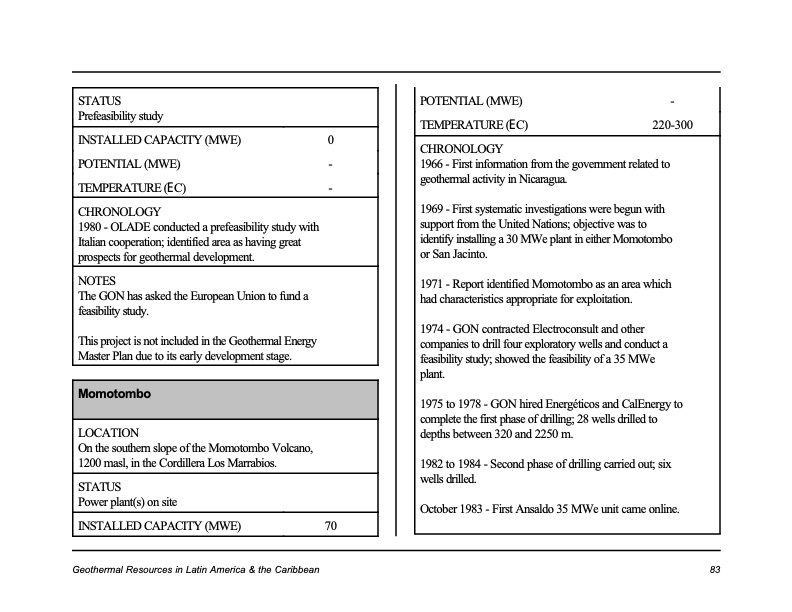

Text from PDF Page: 085
STATUS Prefeasibility study INSTALLED CAPACITY (MWE) POTENTIAL (MWE) TEMPERATURE (EC) 0 - - POTENTIAL (MWE) TEMPERATURE (EC) - 220-300 CHRONOLOGY 1966 - First information from the government related to geothermal activity in Nicaragua. 1969 - First systematic investigations were begun with support from the United Nations; objective was to identify installing a 30 MWe plant in either Momotombo or San Jacinto. 1971 - Report identified Momotombo as an area which had characteristics appropriate for exploitation. 1974 - GON contracted Electroconsult and other companies to drill four exploratory wells and conduct a feasibility study; showed the feasibility of a 35 MWe plant. 1975 to 1978 - GON hired EnergeĢticos and CalEnergy to complete the first phase of drilling; 28 wells drilled to depths between 320 and 2250 m. 1982 to 1984 - Second phase of drilling carried out; six wells drilled. October 1983 - First Ansaldo 35 MWe unit came online. CHRONOLOGY 1980 - OLADE conducted a prefeasibility study with Italian cooperation; identified area as having great prospects for geothermal development. NOTES The GON has asked the European Union to fund a feasibility study. This project is not included in the Geothermal Energy Master Plan due to its early development stage. Momotombo LOCATION On the southern slope of the Momotombo Volcano, 1200 masl, in the Cordillera Los Marrabios. STATUS Power plant(s) on site INSTALLED CAPACITY (MWE) 70 Geothermal Resources in Latin America & the Caribbean 83PDF Image | Geothermal Resources in the Caribbean and Latin America
PDF Search Title:
Geothermal Resources in the Caribbean and Latin AmericaOriginal File Name Searched:
georeslac.pdfDIY PDF Search: Google It | Yahoo | Bing
