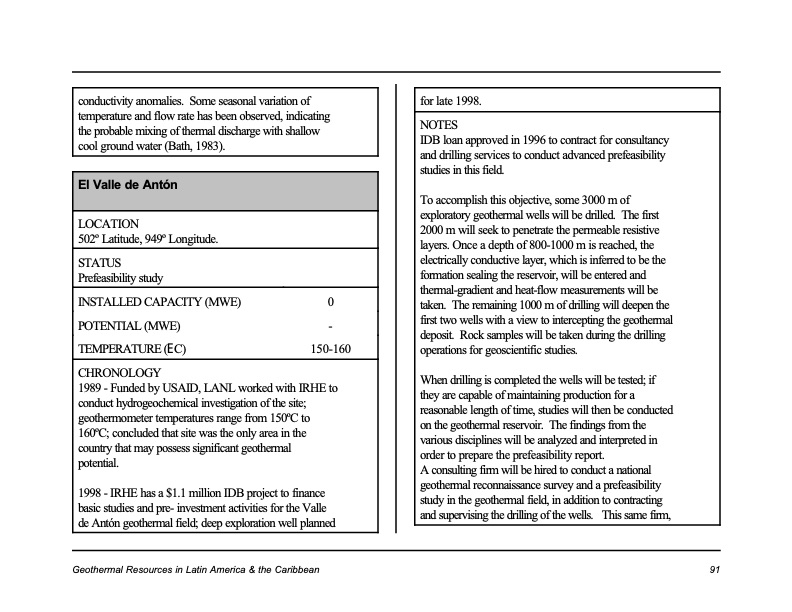

conductivity anomalies. Some seasonal variation of temperature and flow rate has been observed, indicating the probable mixing of thermal discharge with shallow cool ground water (Bath, 1983). for late 1998. NOTES IDB loan approved in 1996 to contract for consultancy and drilling services to conduct advanced prefeasibility studies in this field. To accomplish this objective, some 3000 m of exploratory geothermal wells will be drilled. The first 2000 m will seek to penetrate the permeable resistive layers. Once a depth of 800-1000 m is reached, the electrically conductive layer, which is inferred to be the formation sealing the reservoir, will be entered and thermal-gradient and heat-flow measurements will be taken. Theremaining1000mofdrillingwilldeepenthe first two wells with a view to intercepting the geothermal deposit. Rocksampleswillbetakenduringthedrilling operations for geoscientific studies. When drilling is completed the wells will be tested; if they are capable of maintaining production for a reasonable length of time, studies will then be conducted onthegeothermalreservoir. Thefindingsfromthe various disciplines will be analyzed and interpreted in order to prepare the prefeasibility report. A consulting firm will be hired to conduct a national geothermal reconnaissance survey and a prefeasibility study in the geothermal field, in addition to contracting and supervising the drilling of the wells. This same firm, El Valle de Antón LOCATION 502o Latitude, 949o Longitude. STATUS Prefeasibility study INSTALLED CAPACITY (MWE) 0 POTENTIAL (MWE) - TEMPERATURE (EC) 150-160 CHRONOLOGY 1989 - Funded by USAID, LANL worked with IRHE to conduct hydrogeochemical investigation of the site; geothermometer temperatures range from 150oC to 160oC; concluded that site was the only area in the country that may possess significant geothermal potential. 1998 - IRHE has a $1.1 million IDB project to finance basic studies and pre- investment activities for the Valle de Antón geothermal field; deep exploration well planned Geothermal Resources in Latin America & the Caribbean 91PDF Image | Geothermal Resources in the Caribbean and Latin America
