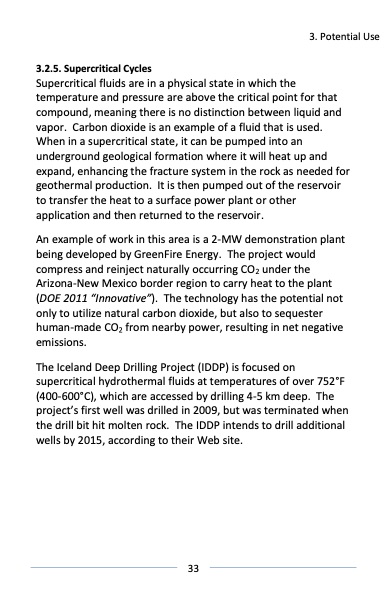

3.2.5. Supercritical Cycles Supercritical fluids are in a physical state in which the temperature and pressure are above the critical point for that compound, meaning there is no distinction between liquid and vapor. Carbon dioxide is an example of a fluid that is used. When in a supercritical state, it can be pumped into an underground geological formation where it will heat up and expand, enhancing the fracture system in the rock as needed for geothermal production. It is then pumped out of the reservoir to transfer the heat to a surface power plant or other application and then returned to the reservoir. An example of work in this area is a 2-MW demonstration plant being developed by GreenFire Energy. The project would compress and reinject naturally occurring CO2 under the Arizona-New Mexico border region to carry heat to the plant (DOE 2011 “Innovative”). The technology has the potential not only to utilize natural carbon dioxide, but also to sequester human-made CO2 from nearby power, resulting in net negative emissions. The Iceland Deep Drilling Project (IDDP) is focused on supercritical hydrothermal fluids at temperatures of over 752°F (400-600°C), which are accessed by drilling 4-5 km deep. The project’s first well was drilled in 2009, but was terminated when the drill bit hit molten rock. The IDDP intends to drill additional wells by 2015, according to their Web site. 33 3. Potential UsePDF Image | Green Machine Series 4000
