PDF Publication Title:
Text from PDF Page: 006

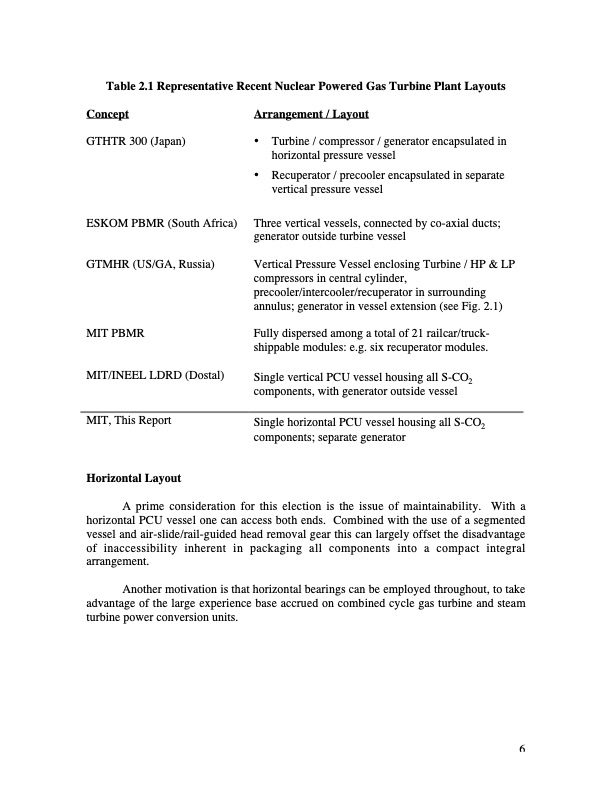

Table 2.1 Representative Recent Nuclear Powered Gas Turbine Plant Layouts Concept GTHTR 300 (Japan) ESKOM PBMR (South Africa) GTMHR (US/GA, Russia) MIT PBMR MIT/INEEL LDRD (Dostal) MIT, This Report Horizontal Layout Arrangement / Layout • Turbine / compressor / generator encapsulated in horizontal pressure vessel • Recuperator / precooler encapsulated in separate vertical pressure vessel Three vertical vessels, connected by co-axial ducts; generator outside turbine vessel Vertical Pressure Vessel enclosing Turbine / HP & LP compressors in central cylinder, precooler/intercooler/recuperator in surrounding annulus; generator in vessel extension (see Fig. 2.1) Fully dispersed among a total of 21 railcar/truck- shippable modules: e.g. six recuperator modules. Single vertical PCU vessel housing all S-CO2 components, with generator outside vessel Single horizontal PCU vessel housing all S-CO2 components; separate generator A prime consideration for this election is the issue of maintainability. With a horizontal PCU vessel one can access both ends. Combined with the use of a segmented vessel and air-slide/rail-guided head removal gear this can largely offset the disadvantage of inaccessibility inherent in packaging all components into a compact integral arrangement. Another motivation is that horizontal bearings can be employed throughout, to take advantage of the large experience base accrued on combined cycle gas turbine and steam turbine power conversion units. 6PDF Image | 300 MWe Supercritical CO2 Plant Layout and Design
PDF Search Title:
300 MWe Supercritical CO2 Plant Layout and DesignOriginal File Name Searched:
Infinity_300mwe_s_co2.pdfDIY PDF Search: Google It | Yahoo | Bing
