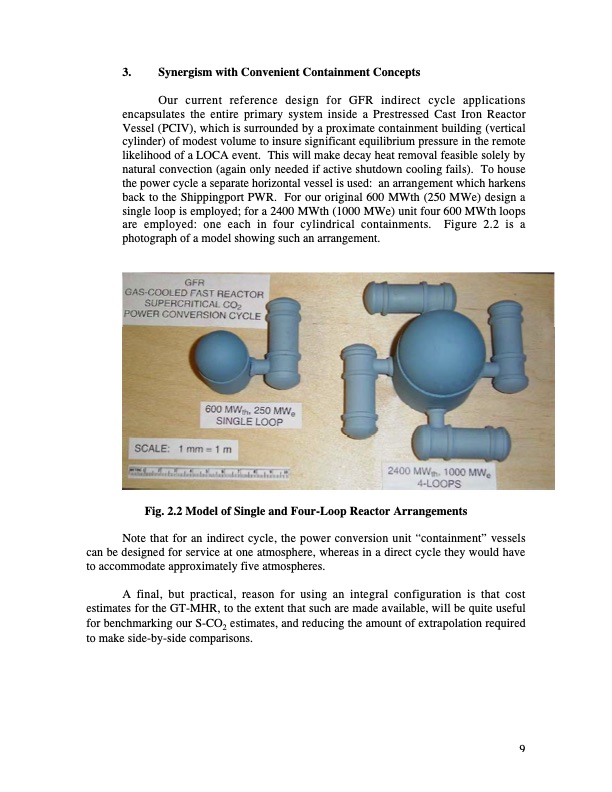

3. Synergism with Convenient Containment Concepts Our current reference design for GFR indirect cycle applications encapsulates the entire primary system inside a Prestressed Cast Iron Reactor Vessel (PCIV), which is surrounded by a proximate containment building (vertical cylinder) of modest volume to insure significant equilibrium pressure in the remote likelihood of a LOCA event. This will make decay heat removal feasible solely by natural convection (again only needed if active shutdown cooling fails). To house the power cycle a separate horizontal vessel is used: an arrangement which harkens back to the Shippingport PWR. For our original 600 MWth (250 MWe) design a single loop is employed; for a 2400 MWth (1000 MWe) unit four 600 MWth loops are employed: one each in four cylindrical containments. Figure 2.2 is a photograph of a model showing such an arrangement. Fig. 2.2 Model of Single and Four-Loop Reactor Arrangements Note that for an indirect cycle, the power conversion unit “containment” vessels can be designed for service at one atmosphere, whereas in a direct cycle they would have to accommodate approximately five atmospheres. A final, but practical, reason for using an integral configuration is that cost estimates for the GT-MHR, to the extent that such are made available, will be quite useful for benchmarking our S-CO2 estimates, and reducing the amount of extrapolation required to make side-by-side comparisons. 9PDF Image | 300 MWe Supercritical CO2 Plant Layout and Design
