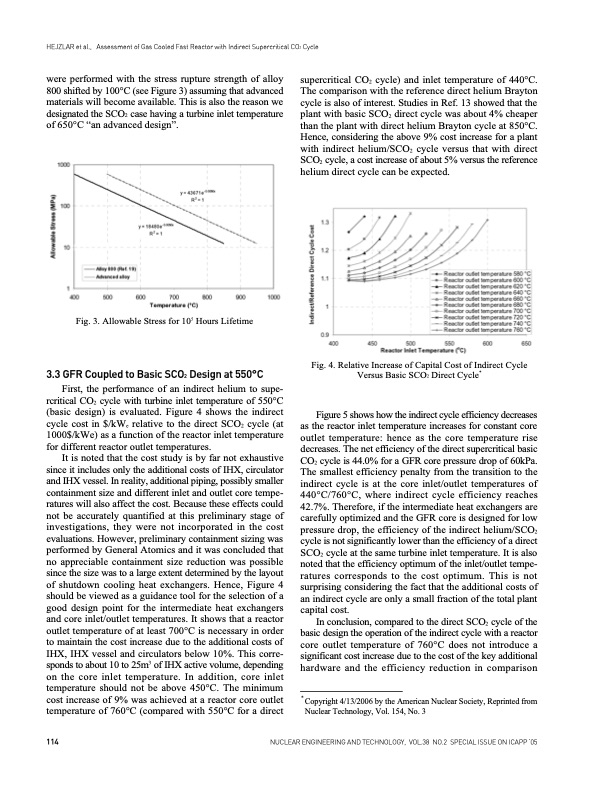

HEJZLARetal., AssessmentofGasCooledFastReactorwithIndirectSupercriticalCO2Cycle were performed with the stress rupture strength of alloy 800 shifted by 100°C (see Figure 3) assuming that advanced materials will become available. This is also the reason we designated the SCO2 case having a turbine inlet temperature of 650°C “an advanced design”. 3.3 GFR Coupled to Basic SCO2 Design at 550°C First, the performance of an indirect helium to supe- rcritical CO2 cycle with turbine inlet temperature of 550°C (basic design) is evaluated. Figure 4 shows the indirect cycle cost in $/kWe relative to the direct SCO2 cycle (at 1000$/kWe) as a function of the reactor inlet temperature for different reactor outlet temperatures. It is noted that the cost study is by far not exhaustive since it includes only the additional costs of IHX, circulator and IHX vessel. In reality, additional piping, possibly smaller containment size and different inlet and outlet core tempe- ratures will also affect the cost. Because these effects could not be accurately quantified at this preliminary stage of investigations, they were not incorporated in the cost evaluations. However, preliminary containment sizing was performed by General Atomics and it was concluded that no appreciable containment size reduction was possible since the size was to a large extent determined by the layout of shutdown cooling heat exchangers. Hence, Figure 4 should be viewed as a guidance tool for the selection of a good design point for the intermediate heat exchangers and core inlet/outlet temperatures. It shows that a reactor outlet temperature of at least 700°C is necessary in order to maintain the cost increase due to the additional costs of IHX, IHX vessel and circulators below 10%. This corre- sponds to about 10 to 25m3 of IHX active volume, depending on the core inlet temperature. In addition, core inlet temperature should not be above 450°C. The minimum cost increase of 9% was achieved at a reactor core outlet temperature of 760°C (compared with 550°C for a direct supercritical CO2 cycle) and inlet temperature of 440°C. The comparison with the reference direct helium Brayton cycle is also of interest. Studies in Ref. 13 showed that the plant with basic SCO2 direct cycle was about 4% cheaper than the plant with direct helium Brayton cycle at 850°C. Hence, considering the above 9% cost increase for a plant with indirect helium/SCO2 cycle versus that with direct SCO2 cycle, a cost increase of about 5% versus the reference helium direct cycle can be expected. Figure 5 shows how the indirect cycle efficiency decreases as the reactor inlet temperature increases for constant core outlet temperature: hence as the core temperature rise decreases. The net efficiency of the direct supercritical basic CO2 cycle is 44.0% for a GFR core pressure drop of 60kPa. The smallest efficiency penalty from the transition to the indirect cycle is at the core inlet/outlet temperatures of 440°C/760°C, where indirect cycle efficiency reaches 42.7%. Therefore, if the intermediate heat exchangers are carefully optimized and the GFR core is designed for low pressure drop, the efficiency of the indirect helium/SCO2 cycle is not significantly lower than the efficiency of a direct SCO2 cycle at the same turbine inlet temperature. It is also noted that the efficiency optimum of the inlet/outlet tempe- ratures corresponds to the cost optimum. This is not surprising considering the fact that the additional costs of an indirect cycle are only a small fraction of the total plant capital cost. In conclusion, compared to the direct SCO2 cycle of the basic design the operation of the indirect cycle with a reactor core outlet temperature of 760°C does not introduce a significant cost increase due to the cost of the key additional hardware and the efficiency reduction in comparison Fig. 3. Allowable Stress for 105 Hours Lifetime Fig. 4. Relative Increase of Capital Cost of Indirect Cycle Versus Basic SCO2 Direct Cycle* * Copyright 4/13/2006 by the American Nuclear Society, Reprinted from Nuclear Technology, Vol. 154, No. 3 114 NUCLEAR ENGINEERING AND TECHNOLOGY, VOL.38 NO.2 SPECIAL ISSUE ON ICAPP ‘05PDF Image | ElectraTherm Green Machine Generates Power Biomass in Italy
