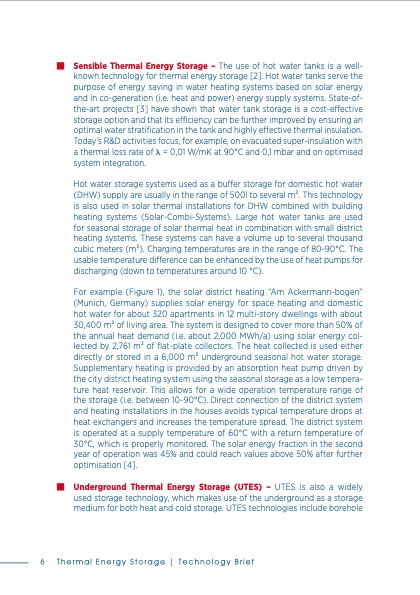

Sensible Thermal Energy Storage – The use of hot water tanks is a well- known technology for thermal energy storage [2]. Hot water tanks serve the purpose of energy saving in water heating systems based on solar energy and in co-generation (i.e. heat and power) energy supply systems. State-of- the-art projects [3] have shown that water tank storage is a cost-effective storage option and that its efficiency can be further improved by ensuring an optimal water stratification in the tank and highly effective thermal insulation. Today’s R&D activities focus, for example, on evacuated super-insulation with a thermal loss rate of = 0,01 W/mK at 90°C and 0,1 mbar and on optimised system integration. Hot water storage systems used as a buffer storage for domestic hot water (DHW) supply are usually in the range of 500l to several m3. This technology is also used in solar thermal installations for DHW combined with building heating systems (Solar-Combi-Systems). Large hot water tanks are used for seasonal storage of solar thermal heat in combination with small district heating systems. These systems can have a volume up to several thousand cubic meters (m3). Charging temperatures are in the range of 80-90°C. The usable temperature difference can be enhanced by the use of heat pumps for discharging (down to temperatures around 10 °C). For example (Figure 1), the solar district heating “Am Ackermann-bogen” (Munich, Germany) supplies solar energy for space heating and domestic hot water for about 320 apartments in 12 multi-story dwellings with about 30,400 m2 of living area. The system is designed to cover more than 50% of the annual heat demand (i.e. about 2,000 MWh/a) using solar energy col- lected by 2,761 m2 of flat-plate collectors. The heat collected is used either directly or stored in a 6,000 m3 underground seasonal hot water storage. Supplementary heating is provided by an absorption heat pump driven by the city district heating system using the seasonal storage as a low tempera- ture heat reservoir. This allows for a wide operation temperature range of the storage (i.e. between 10-90°C). Direct connection of the district system and heating installations in the houses avoids typical temperature drops at heat exchangers and increases the temperature spread. The district system is operated at a supply temperature of 60°C with a return temperature of 30°C, which is properly monitored. The solar energy fraction in the second year of operation was 45% and could reach values above 50% after further optimisation [4]. Underground Thermal Energy Storage (UTES) – UTES is also a widely used storage technology, which makes use of the underground as a storage medium for both heat and cold storage. UTES technologies include borehole 6 Thermal Energy Storage | Technology BriefPDF Image | ENERGY TECHNOLOGY SYSTEMS ANALYSIS
