PDF Publication Title:
Text from PDF Page: 009

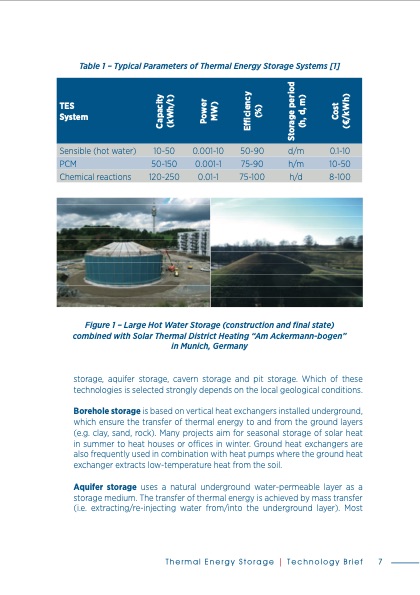

Table 1 – Typical Parameters of Thermal Energy Storage Systems [1] TES System Sensible (hot water) 10-50 0.001-10 50-90 d/m 0.1-10 PCM 50-150 0.001-1 75-90 h/m 10-50 Chemical reactions 120-250 0.01-1 75-100 h/d 8-100 Figure 1 – Large Hot Water Storage (construction and final state) combined with Solar Thermal District Heating “Am Ackermann-bogen” in Munich, Germany storage, aquifer storage, cavern storage and pit storage. Which of these technologies is selected strongly depends on the local geological conditions. Borehole storage is based on vertical heat exchangers installed underground, which ensure the transfer of thermal energy to and from the ground layers (e.g. clay, sand, rock). Many projects aim for seasonal storage of solar heat in summer to heat houses or offices in winter. Ground heat exchangers are also frequently used in combination with heat pumps where the ground heat exchanger extracts low-temperature heat from the soil. Aquifer storage uses a natural underground water-permeable layer as a storage medium. The transfer of thermal energy is achieved by mass transfer (i.e. extracting/re-injecting water from/into the underground layer). Most Thermal Energy Storage | Technology Brief 7 Capacity (kWh/t) Power MW) Efficiency (%) Storage period (h, d, m) Cost (€/kWh)PDF Image | ENERGY TECHNOLOGY SYSTEMS ANALYSIS
