PDF Publication Title:
Text from PDF Page: 018

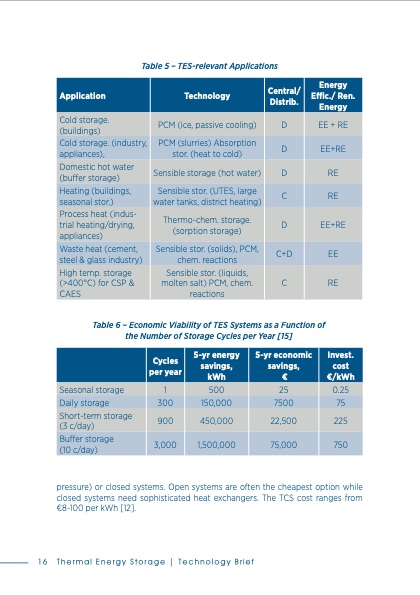

Table 5 – TES-relevant Applications Application Technology Central/ Distrib. Energy Effic./ Ren. Energy Cold storage. (buildings) PCM (ice, passive cooling) D EE + RE Cold storage. (industry, appliances), PCM (slurries) Absorption stor. (heat to cold) D EE+RE Domestic hot water (buffer storage) Sensible storage (hot water) D RE Heating (buildings, seasonal stor.) Sensible stor. (UTES, large water tanks, district heating) C RE Process heat (indus- trial heating/drying, appliances) Thermo-chem. storage. (sorption storage) D EE+RE Waste heat (cement, steel & glass industry) Sensible stor. (solids), PCM, chem. reactions C+D EE High temp. storage (>400°C) for CSP & CAES Sensible stor. (liquids, molten salt) PCM, chem. reactions C RE Table 6 – Economic Viability of TES Systems as a Function of the Number of Storage Cycles per Year [15] Cycles per year 5-yr energy savings, kWh 5-yr economic savings, € Invest. cost €/kWh Seasonal storage 1 500 25 0.25 Daily storage 300 150,000 7500 75 Short-term storage (3 c/day) 900 450,000 22,500 225 Buffer storage (10 c/day) 3,000 1,500,000 75,000 750 pressure) or closed systems. Open systems are often the cheapest option while closed systems need sophisticated heat exchangers. The TCS cost ranges from €8-100 per kWh [12]. 16 Thermal Energy Storage | Technology BriefPDF Image | ENERGY TECHNOLOGY SYSTEMS ANALYSIS
PDF Search Title:
ENERGY TECHNOLOGY SYSTEMS ANALYSISOriginal File Name Searched:
IRENA_ETSAP_Tech_Brief_E17_Thermal_Energy_Storage.pdfDIY PDF Search: Google It | Yahoo | Bing
