PDF Publication Title:
Text from PDF Page: 019

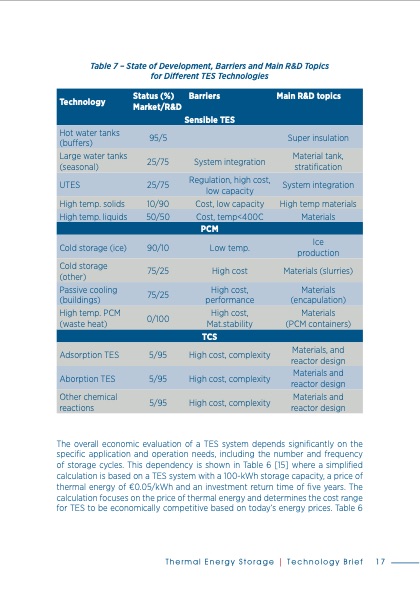

Table 7 – State of Development, Barriers and Main R&D Topics for Different TES Technologies Technology Status (%) Market/R&D Barriers Main R&D topics Sensible TES Hot water tanks (buffers) 95/5 Super insulation Large water tanks (seasonal) 25/75 System integration Material tank, stratification UTES 25/75 Regulation, high cost, low capacity System integration High temp. solids 10/90 Cost, low capacity High temp materials High temp. liquids 50/50 Cost, temp<400C Materials PCM Cold storage (ice) 90/10 Low temp. Ice production Cold storage (other) 75/25 High cost Materials (slurries) Passive cooling (buildings) 75/25 High cost, performance Materials (encapulation) High temp. PCM (waste heat) 0/100 High cost, Mat.stability Materials (PCM containers) TCS Adsorption TES 5/95 High cost, complexity Materials, and reactor design Aborption TES 5/95 High cost, complexity Materials and reactor design Other chemical reactions 5/95 High cost, complexity Materials and reactor design The overall economic evaluation of a TES system depends significantly on the specific application and operation needs, including the number and frequency of storage cycles. This dependency is shown in Table 6 [15] where a simplified calculation is based on a TES system with a 100-kWh storage capacity, a price of thermal energy of €0.05/kWh and an investment return time of five years. The calculation focuses on the price of thermal energy and determines the cost range for TES to be economically competitive based on today’s energy prices. Table 6 Thermal Energy Storage | Technology Brief 17PDF Image | ENERGY TECHNOLOGY SYSTEMS ANALYSIS
