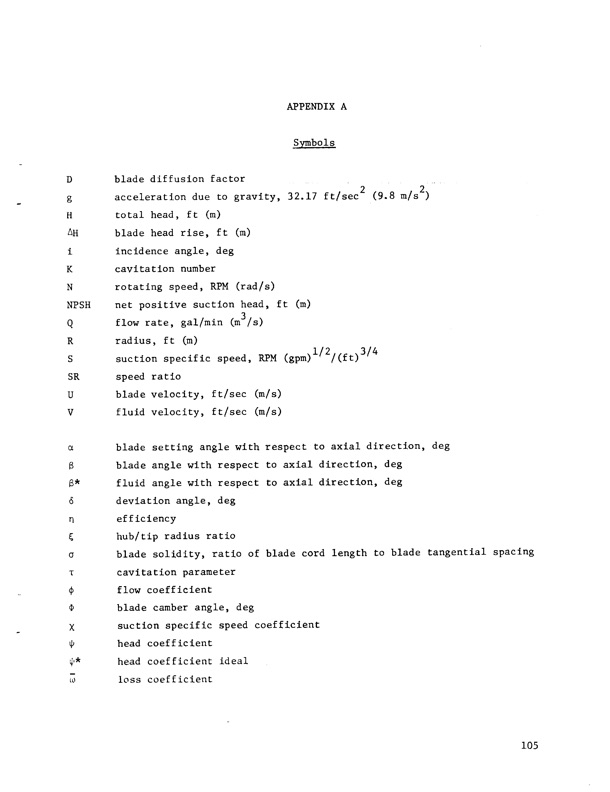

D blade diffusion factor acceleration due to gravity, 32.17 ft/sec 2 (9.8 m/s 2) APPENDIX A Symbols g H total head, ft (m) AH blade head rise, ft (m) i incidence angle, deg K cavitation number N rotating speed, RPM (rad/s) NPSH net positive suction head, ft (m) Q R radius, ft (m) S suction specific speed, RPM (gpm)l/23/1(4f"t") SR speed ratio U blade velocity, ft/sec (m/s) V fluid velocity, ft/sec (m/s) c_ blade setting angle with respect to axial direction, deg B blade angle with respect to axial direction, deg B* fluid angle with respect to axial direction, deg 6 deviation angle, deg n efficiency hub/tip radius ratio o blade solidity, ratio of blade cord length to blade tangential spacing T cavitation parameter flow coefficient blade camber angle, deg X suction specific speed coefficient head coefficient head coefficient ideal loss coefficient flow rate, gal/min (m3/s) 105PDF Image | HUBLESS INDUCER FLOW HYDRAULIC TURBINE INDUCER BOOST PUMP
