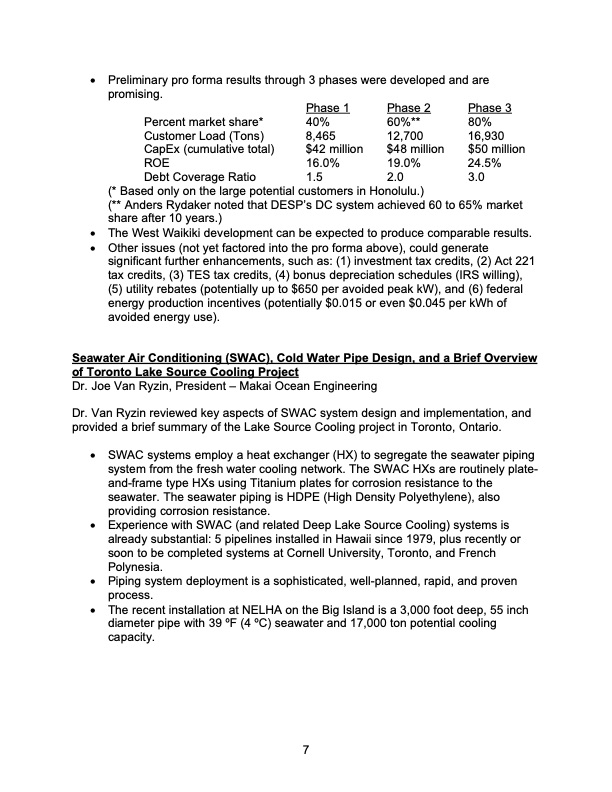

• Preliminary pro forma results through 3 phases were developed and are promising. Percent market share* Customer Load (Tons) CapEx (cumulative total) ROE Phase 1 40% 8,465 $42 million 16.0% Phase 2 60%** 12,700 $48 million 19.0% Phase 3 80% 16,930 $50 million 24.5% Debt Coverage Ratio (* Based only on the large potential customers in Honolulu.) (** Anders Rydaker noted that DESP’s DC system achieved 60 to 65% market share after 10 years.) • The West Waikiki development can be expected to produce comparable results. • Other issues (not yet factored into the pro forma above), could generate significant further enhancements, such as: (1) investment tax credits, (2) Act 221 tax credits, (3) TES tax credits, (4) bonus depreciation schedules (IRS willing), (5) utility rebates (potentially up to $650 per avoided peak kW), and (6) federal energy production incentives (potentially $0.015 or even $0.045 per kWh of avoided energy use). Seawater Air Conditioning (SWAC), Cold Water Pipe Design, and a Brief Overview of Toronto Lake Source Cooling Project Dr. Joe Van Ryzin, President – Makai Ocean Engineering Dr. Van Ryzin reviewed key aspects of SWAC system design and implementation, and provided a brief summary of the Lake Source Cooling project in Toronto, Ontario. • SWAC systems employ a heat exchanger (HX) to segregate the seawater piping system from the fresh water cooling network. The SWAC HXs are routinely plate- and-frame type HXs using Titanium plates for corrosion resistance to the seawater. The seawater piping is HDPE (High Density Polyethylene), also providing corrosion resistance. • Experience with SWAC (and related Deep Lake Source Cooling) systems is already substantial: 5 pipelines installed in Hawaii since 1979, plus recently or soon to be completed systems at Cornell University, Toronto, and French Polynesia. • Piping system deployment is a sophisticated, well-planned, rapid, and proven process. • The recent installation at NELHA on the Big Island is a 3,000 foot deep, 55 inch diameter pipe with 39 oF (4 oC) seawater and 17,000 ton potential cooling capacity. 1.5 2.0 3.0 7PDF Image | Innovative Energy Systems Workshop
