PDF Publication Title:

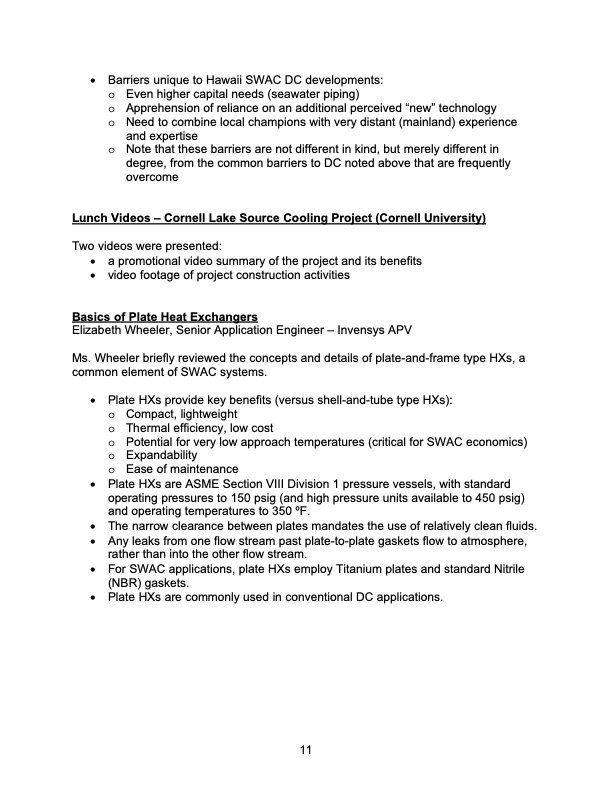

Text from PDF Page: 011
• Barriers unique to Hawaii SWAC DC developments: o Even higher capital needs (seawater piping) o Apprehension of reliance on an additional perceived “new” technology o Need to combine local champions with very distant (mainland) experience and expertise o Note that these barriers are not different in kind, but merely different in degree, from the common barriers to DC noted above that are frequently overcome Lunch Videos – Cornell Lake Source Cooling Project (Cornell University) Two videos were presented: • a promotional video summary of the project and its benefits • video footage of project construction activities Basics of Plate Heat Exchangers Elizabeth Wheeler, Senior Application Engineer – Invensys APV Ms. Wheeler briefly reviewed the concepts and details of plate-and-frame type HXs, a common element of SWAC systems. • Plate HXs provide key benefits (versus shell-and-tube type HXs): o Compact, lightweight o Thermal efficiency, low cost o Potential for very low approach temperatures (critical for SWAC economics) o Expandability o Ease of maintenance • Plate HXs are ASME Section VIII Division 1 pressure vessels, with standard operating pressures to 150 psig (and high pressure units available to 450 psig) and operating temperatures to 350 oF. • The narrow clearance between plates mandates the use of relatively clean fluids. • Any leaks from one flow stream past plate-to-plate gaskets flow to atmosphere, rather than into the other flow stream. • For SWAC applications, plate HXs employ Titanium plates and standard Nitrile (NBR) gaskets. • Plate HXs are commonly used in conventional DC applications. 11PDF Image | Innovative Energy Systems Workshop
