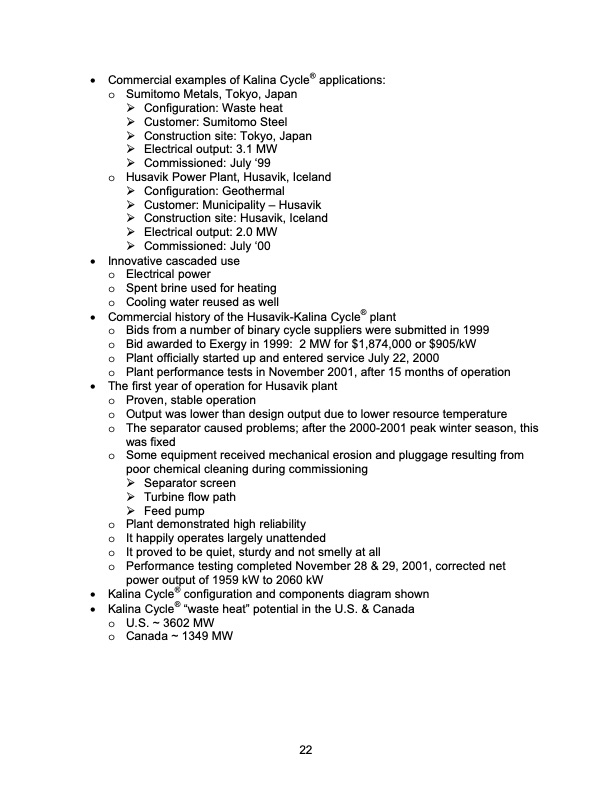

• Commercial examples of Kalina Cycle® applications: o Sumitomo Metals, Tokyo, Japan Configuration: Waste heat Customer: Sumitomo Steel Construction site: Tokyo, Japan Electrical output: 3.1 MW Commissioned: July ‘99 o Husavik Power Plant, Husavik, Iceland Configuration: Geothermal Customer: Municipality – Husavik Construction site: Husavik, Iceland Electrical output: 2.0 MW Commissioned: July ‘00 • Innovative cascaded use o Electrical power o Spent brine used for heating o Cooling water reused as well • Commercial history of the Husavik-Kalina Cycle® plant o Bids from a number of binary cycle suppliers were submitted in 1999 o Bid awarded to Exergy in 1999: 2 MW for $1,874,000 or $905/kW o Plant officially started up and entered service July 22, 2000 o Plant performance tests in November 2001, after 15 months of operation • The first year of operation for Husavik plant o Proven, stable operation o Output was lower than design output due to lower resource temperature o The separator caused problems; after the 2000-2001 peak winter season, this was fixed o Some equipment received mechanical erosion and pluggage resulting from poor chemical cleaning during commissioning Separator screen Turbine flow path Feed pump o Plant demonstrated high reliability o It happily operates largely unattended o It proved to be quiet, sturdy and not smelly at all o Performance testing completed November 28 & 29, 2001, corrected net power output of 1959 kW to 2060 kW • Kalina Cycle® configuration and components diagram shown • Kalina Cycle® “waste heat” potential in the U.S. & Canada o U.S.~3602MW o Canada ~ 1349 MW 22PDF Image | Innovative Energy Systems Workshop
