PDF Publication Title:

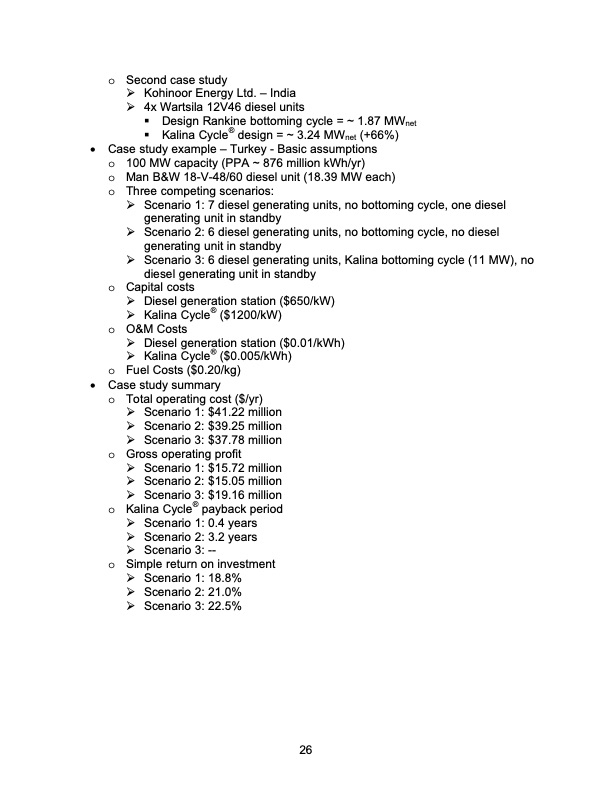

Text from PDF Page: 026
o Second case study Kohinoor Energy Ltd. – India 4x Wartsila 12V46 diesel units Design Rankine bottoming cycle = ~ 1.87 MWnet Kalina Cycle® design = ~ 3.24 MWnet (+66%) • Case study example – Turkey - Basic assumptions o 100 MW capacity (PPA ~ 876 million kWh/yr) o Man B&W 18-V-48/60 diesel unit (18.39 MW each) o Three competing scenarios: Scenario 1: 7 diesel generating units, no bottoming cycle, one diesel generating unit in standby Scenario 2: 6 diesel generating units, no bottoming cycle, no diesel generating unit in standby Scenario 3: 6 diesel generating units, Kalina bottoming cycle (11 MW), no diesel generating unit in standby o Capital costs Diesel generation station ($650/kW) Kalina Cycle® ($1200/kW) o O&M Costs Diesel generation station ($0.01/kWh) Kalina Cycle® ($0.005/kWh) o Fuel Costs ($0.20/kg) • Case study summary o Total operating cost ($/yr) Scenario 1: $41.22 million Scenario 2: $39.25 million Scenario 3: $37.78 million o Gross operating profit Scenario 1: $15.72 million Scenario 2: $15.05 million Scenario 3: $19.16 million o Kalina Cycle® payback period Scenario 1: 0.4 years Scenario 2: 3.2 years Scenario 3: -- o Simple return on investment Scenario 1: 18.8% Scenario 2: 21.0% Scenario 3: 22.5% 26PDF Image | Innovative Energy Systems Workshop
