Text from PDF Page: 009

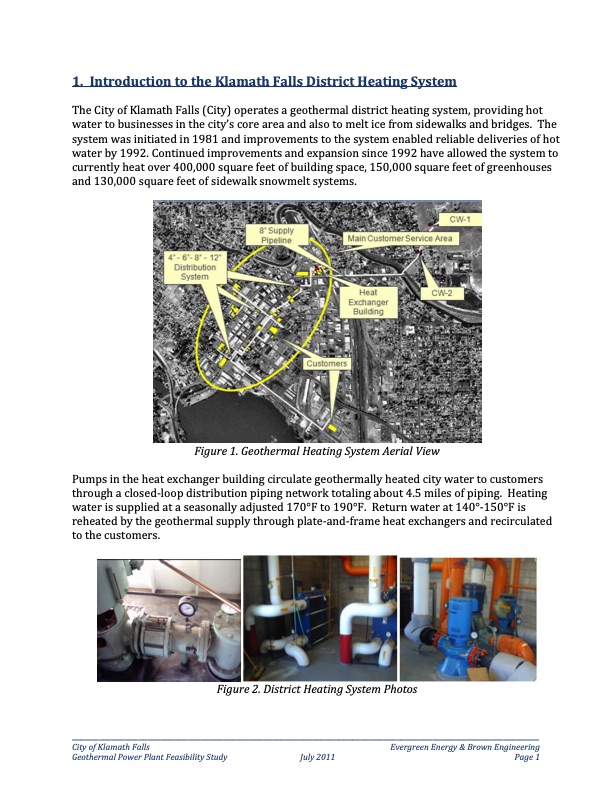

1. Introduction to the Klamath Falls District Heating System The City of Klamath Falls (City) operates a geothermal district heating system, providing hot water to businesses in the city’s core area and also to melt ice from sidewalks and bridges. The system was initiated in 1981 and improvements to the system enabled reliable deliveries of hot water by 1992. Continued improvements and expansion since 1992 have allowed the system to currently heat over 400,000 square feet of building space, 150,000 square feet of greenhouses and 130,000 square feet of sidewalk snowmelt systems. Figure 1. Geothermal Heating System Aerial View Pumps in the heat exchanger building circulate geothermally heated city water to customers through a closed‐loop distribution piping network totaling about 4.5 miles of piping. Heating water is supplied at a seasonally adjusted 170°F to 190°F. Return water at 140°‐150°F is reheated by the geothermal supply through plate‐and‐frame heat exchangers and recirculated to the customers. Figure 2. District Heating System Photos _________________________________________________________________________________________________________ City of Klamath Falls Evergreen Energy & Brown Engineering Geothermal Power Plant Feasibility Study July 2011 Page 1PDF Image | Klamath Falls, Oregon Geothermal Power Plant Feasibility Study
