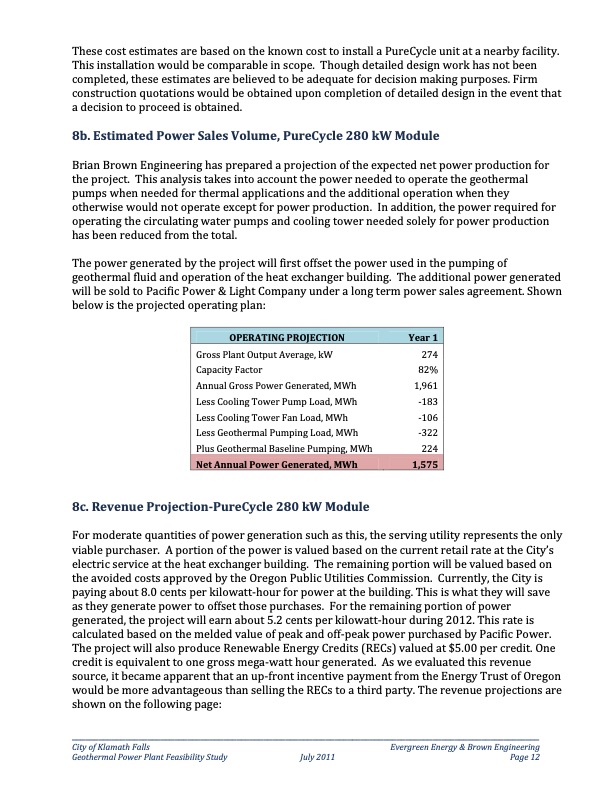

These cost estimates are based on the known cost to install a PureCycle unit at a nearby facility. This installation would be comparable in scope. Though detailed design work has not been completed, these estimates are believed to be adequate for decision making purposes. Firm construction quotations would be obtained upon completion of detailed design in the event that a decision to proceed is obtained. 8b. Estimated Power Sales Volume, PureCycle 280 kW Module Brian Brown Engineering has prepared a projection of the expected net power production for the project. This analysis takes into account the power needed to operate the geothermal pumps when needed for thermal applications and the additional operation when they otherwise would not operate except for power production. In addition, the power required for operating the circulating water pumps and cooling tower needed solely for power production has been reduced from the total. The power generated by the project will first offset the power used in the pumping of geothermal fluid and operation of the heat exchanger building. The additional power generated will be sold to Pacific Power & Light Company under a long term power sales agreement. Shown below is the projected operating plan: OPERATING PROJECTION Gross Plant Output Average, kW Capacity Factor Annual Gross Power Generated, MWh Less Cooling Tower Pump Load, MWh Less Cooling Tower Fan Load, MWh Less Geothermal Pumping Load, MWh Plus Geothermal Baseline Pumping, MWh Net Annual Power Generated, MWh Year 1 274 82% 1,961 ‐183 ‐106 ‐322 224 1,575 8c. Revenue ProjectionPureCycle 280 kW Module For moderate quantities of power generation such as this, the serving utility represents the only viable purchaser. A portion of the power is valued based on the current retail rate at the City’s electric service at the heat exchanger building. The remaining portion will be valued based on the avoided costs approved by the Oregon Public Utilities Commission. Currently, the City is paying about 8.0 cents per kilowatt‐hour for power at the building. This is what they will save as they generate power to offset those purchases. For the remaining portion of power generated, the project will earn about 5.2 cents per kilowatt‐hour during 2012. This rate is calculated based on the melded value of peak and off‐peak power purchased by Pacific Power. The project will also produce Renewable Energy Credits (RECs) valued at $5.00 per credit. One credit is equivalent to one gross mega‐watt hour generated. As we evaluated this revenue source, it became apparent that an up‐front incentive payment from the Energy Trust of Oregon would be more advantageous than selling the RECs to a third party. The revenue projections are shown on the following page: _________________________________________________________________________________________________________ City of Klamath Falls Evergreen Energy & Brown Engineering Geothermal Power Plant Feasibility Study July 2011 Page 12PDF Image | Klamath Falls, Oregon Geothermal Power Plant Feasibility Study
