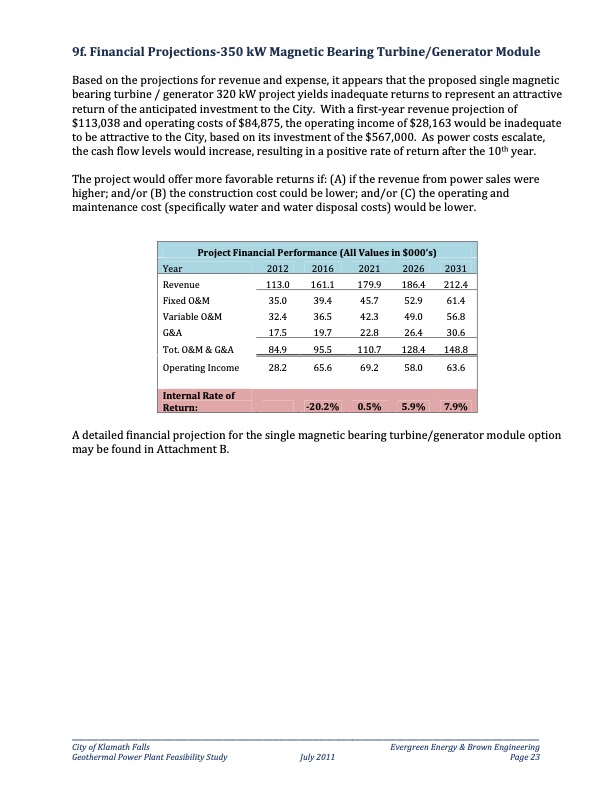

9f. Financial Projections350 kW Magnetic Bearing Turbine/Generator Module Based on the projections for revenue and expense, it appears that the proposed single magnetic bearing turbine / generator 320 kW project yields inadequate returns to represent an attractive return of the anticipated investment to the City. With a first‐year revenue projection of $113,038 and operating costs of $84,875, the operating income of $28,163 would be inadequate to be attractive to the City, based on its investment of the $567,000. As power costs escalate, the cash flow levels would increase, resulting in a positive rate of return after the 10th year. The project would offer more favorable returns if: (A) if the revenue from power sales were higher; and/or (B) the construction cost could be lower; and/or (C) the operating and maintenance cost (specifically water and water disposal costs) would be lower. Year Project Financial Performance (All Values in $000’s) 2012 113.0 35.0 32.4 17.5 28.2 2016 2021 161.1 179.9 39.4 45.7 36.5 42.3 19.7 22.8 65.6 69.2 20.2% 0.5% 2026 2031 186.4 212.4 52.9 61.4 49.0 56.8 26.4 30.6 58.0 63.6 5.9% 7.9% Revenue Fixed O&M Variable O&M G&A Tot. O&M & G&A 84.9 128.4 Operating Income Internal Rate of Return: 95.5 110.7 148.8 A detailed financial projection for the single magnetic bearing turbine/generator module option may be found in Attachment B. _________________________________________________________________________________________________________ City of Klamath Falls Evergreen Energy & Brown Engineering Geothermal Power Plant Feasibility Study July 2011 Page 23PDF Image | Klamath Falls, Oregon Geothermal Power Plant Feasibility Study
