Text from PDF Page: 042

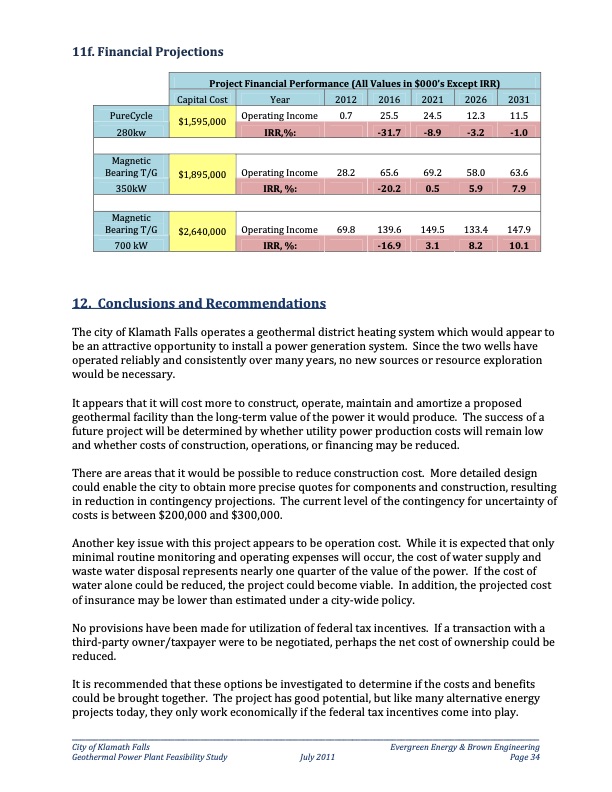

11f. Financial Projections Project Financial Performance (All Values in $000’s Except IRR) Capital Cost Year 2012 2016 2021 2026 2031 PureCycle $1,595,000 Operating Income 0.7 25.5 31.7 65.6 20.2 139.6 16.9 24.5 12.3 11.5 8.9 3.2 1.0 69.2 58.0 63.6 0.5 5.9 7.9 149.5 133.4 147.9 3.1 8.2 10.1 280kw IRR,%: Magnetic Bearing T/G $1,895,000 28.2 Magnetic Bearing T/G Operating Income 350kW IRR, %: $2,640,000 Operating Income 69.8 700 kW IRR, %: 12. Conclusions and Recommendations The city of Klamath Falls operates a geothermal district heating system which would appear to be an attractive opportunity to install a power generation system. Since the two wells have operated reliably and consistently over many years, no new sources or resource exploration would be necessary. It appears that it will cost more to construct, operate, maintain and amortize a proposed geothermal facility than the long‐term value of the power it would produce. The success of a future project will be determined by whether utility power production costs will remain low and whether costs of construction, operations, or financing may be reduced. There are areas that it would be possible to reduce construction cost. More detailed design could enable the city to obtain more precise quotes for components and construction, resulting in reduction in contingency projections. The current level of the contingency for uncertainty of costs is between $200,000 and $300,000. Another key issue with this project appears to be operation cost. While it is expected that only minimal routine monitoring and operating expenses will occur, the cost of water supply and waste water disposal represents nearly one quarter of the value of the power. If the cost of water alone could be reduced, the project could become viable. In addition, the projected cost of insurance may be lower than estimated under a city‐wide policy. No provisions have been made for utilization of federal tax incentives. If a transaction with a third‐party owner/taxpayer were to be negotiated, perhaps the net cost of ownership could be reduced. It is recommended that these options be investigated to determine if the costs and benefits could be brought together. The project has good potential, but like many alternative energy projects today, they only work economically if the federal tax incentives come into play. _________________________________________________________________________________________________________ City of Klamath Falls Evergreen Energy & Brown Engineering Geothermal Power Plant Feasibility Study July 2011 Page 34PDF Image | Klamath Falls, Oregon Geothermal Power Plant Feasibility Study
PDF Search Title:
Klamath Falls, Oregon Geothermal Power Plant Feasibility StudyOriginal File Name Searched:
Klamath_Falls_GEO_Power___Feasibility_Study_6_2011.pdfDIY PDF Search: Google It | Yahoo | Bing
