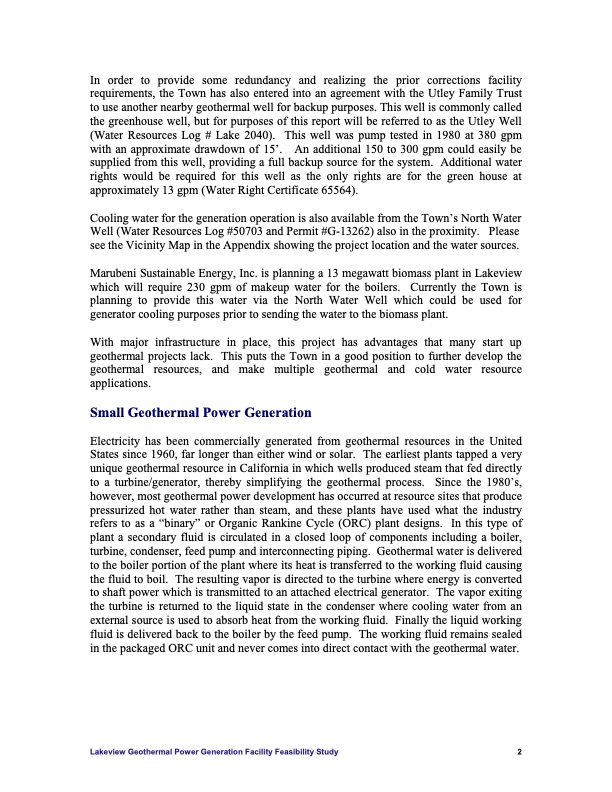

Text from PDF Page: 005
In order to provide some redundancy and realizing the prior corrections facility requirements, the Town has also entered into an agreement with the Utley Family Trust to use another nearby geothermal well for backup purposes. This well is commonly called the greenhouse well, but for purposes of this report will be referred to as the Utley Well (Water Resources Log # Lake 2040). This well was pump tested in 1980 at 380 gpm with an approximate drawdown of 15’. An additional 150 to 300 gpm could easily be supplied from this well, providing a full backup source for the system. Additional water rights would be required for this well as the only rights are for the green house at approximately 13 gpm (Water Right Certificate 65564). Cooling water for the generation operation is also available from the Town’s North Water Well (Water Resources Log #50703 and Permit #G-13262) also in the proximity. Please see the Vicinity Map in the Appendix showing the project location and the water sources. Marubeni Sustainable Energy, Inc. is planning a 13 megawatt biomass plant in Lakeview which will require 230 gpm of makeup water for the boilers. Currently the Town is planning to provide this water via the North Water Well which could be used for generator cooling purposes prior to sending the water to the biomass plant. With major infrastructure in place, this project has advantages that many start up geothermal projects lack. This puts the Town in a good position to further develop the geothermal resources, and make multiple geothermal and cold water resource applications. Small Geothermal Power Generation Electricity has been commercially generated from geothermal resources in the United States since 1960, far longer than either wind or solar. The earliest plants tapped a very unique geothermal resource in California in which wells produced steam that fed directly to a turbine/generator, thereby simplifying the geothermal process. Since the 1980’s, however, most geothermal power development has occurred at resource sites that produce pressurized hot water rather than steam, and these plants have used what the industry refers to as a “binary” or Organic Rankine Cycle (ORC) plant designs. In this type of plant a secondary fluid is circulated in a closed loop of components including a boiler, turbine, condenser, feed pump and interconnecting piping. Geothermal water is delivered to the boiler portion of the plant where its heat is transferred to the working fluid causing the fluid to boil. The resulting vapor is directed to the turbine where energy is converted to shaft power which is transmitted to an attached electrical generator. The vapor exiting the turbine is returned to the liquid state in the condenser where cooling water from an external source is used to absorb heat from the working fluid. Finally the liquid working fluid is delivered back to the boiler by the feed pump. The working fluid remains sealed in the packaged ORC unit and never comes into direct contact with the geothermal water. Lakeview Geothermal Power Generation Facility Feasibility Study 2PDF Image | LAKEVIEW GEOTHERMAL POWER GENERATION FACILITY FEASIBILITY
