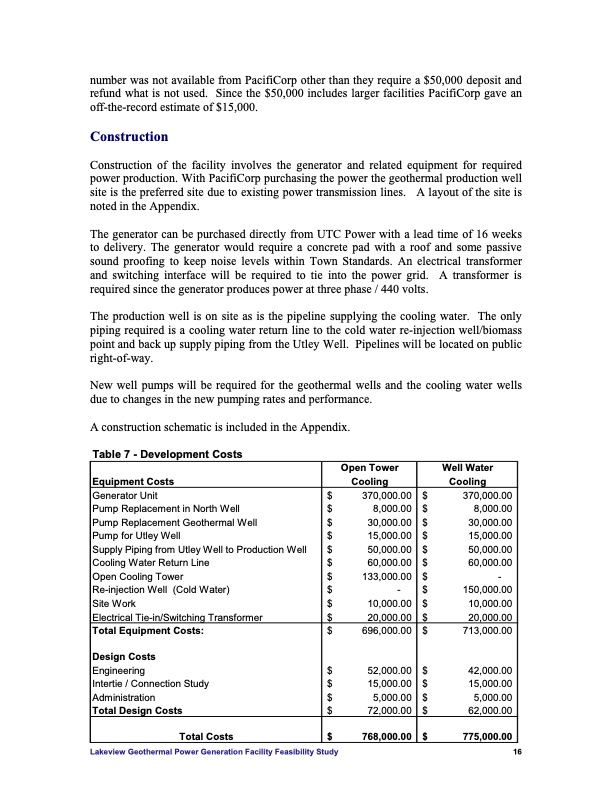

Text from PDF Page: 019
number was not available from PacifiCorp other than they require a $50,000 deposit and refund what is not used. Since the $50,000 includes larger facilities PacifiCorp gave an off-the-record estimate of $15,000. Construction Construction of the facility involves the generator and related equipment for required power production. With PacifiCorp purchasing the power the geothermal production well site is the preferred site due to existing power transmission lines. A layout of the site is noted in the Appendix. The generator can be purchased directly from UTC Power with a lead time of 16 weeks to delivery. The generator would require a concrete pad with a roof and some passive sound proofing to keep noise levels within Town Standards. An electrical transformer and switching interface will be required to tie into the power grid. A transformer is required since the generator produces power at three phase / 440 volts. The production well is on site as is the pipeline supplying the cooling water. The only piping required is a cooling water return line to the cold water re-injection well/biomass point and back up supply piping from the Utley Well. Pipelines will be located on public right-of-way. New well pumps will be required for the geothermal wells and the cooling water wells due to changes in the new pumping rates and performance. A construction schematic is included in the Appendix. Table 7 - Development Costs Equipment Costs Open Tower Cooling Well Water Cooling Generator Unit Pump Replacement in North Well Pump Replacement Geothermal Well Pump for Utley Well Supply Piping from Utley Well to Production Well Cooling Water Return Line Open Cooling Tower Re-injection Well (Cold Water) Site Work Electrical Tie-in/Switching Transformer $ 370,000.00 $ 8,000.00 $ 30,000.00 $ 15,000.00 $ 50,000.00 $ 60,000.00 $ 133,000.00 $- $ 10,000.00 $ 20,000.00 $ 370,000.00 $ 8,000.00 $ 30,000.00 $ 15,000.00 $ 50,000.00 $ 60,000.00 $- $ $ $ 150,000.00 10,000.00 20,000.00 Total Equipment Costs: Design Costs Engineering Intertie / Connection Study Administration Total Design Costs $ $ $ $ $ 696,000.00 52,000.00 15,000.00 5,000.00 72,000.00 $ $ $ $ $ 713,000.00 42,000.00 15,000.00 5,000.00 62,000.00 Total Costs $ 768,000.00 $ 775,000.00 Lakeview Geothermal Power Generation Facility Feasibility Study 16PDF Image | LAKEVIEW GEOTHERMAL POWER GENERATION FACILITY FEASIBILITY
