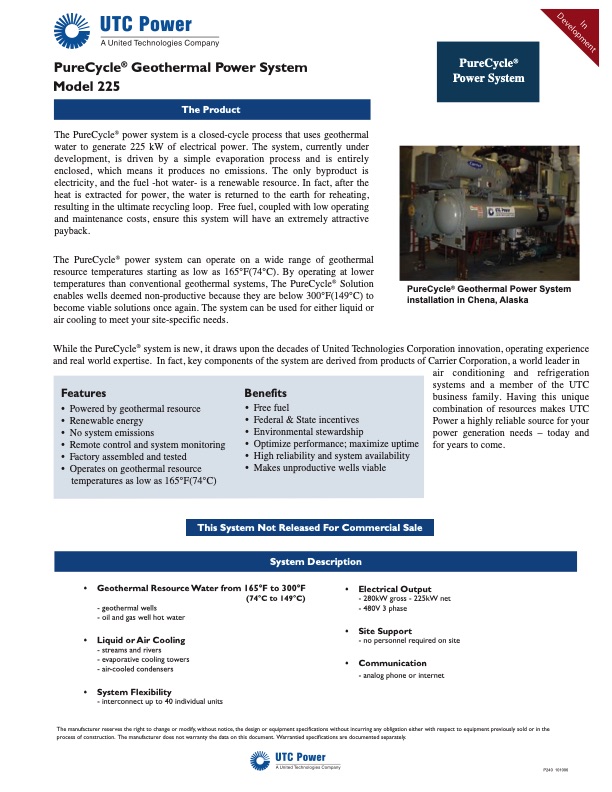

PureCycle® Geothermal Power System Model 225 The Product The PureCycle® power system is a closed-cycle process that uses geothermal water to generate 225 kW of electrical power. The system, currently under development, is driven by a simple evaporation process and is entirely enclosed, which means it produces no emissions. The only byproduct is electricity, and the fuel -hot water- is a renewable resource. In fact, after the heat is extracted for power, the water is returned to the earth for reheating, resulting in the ultimate recycling loop. Free fuel, coupled with low operating and maintenance costs, ensure this system will have an extremely attractive payback. The PureCycle® power system can operate on a wide range of geothermal resource temperatures starting as low as 165°F(74°C). By operating at lower temperatures than conventional geothermal systems, The PureCycle® Solution enables wells deemed non-productive because they are below 300°F(149°C) to become viable solutions once again. The system can be used for either liquid or air cooling to meet your site-specific needs. PureCycle® Geothermal Power System installation in Chena, Alaska While the PureCycle® system is new, it draws upon the decades of United Technologies Corporation innovation, operating experience and real world expertise. In fact, key components of the system are derived from products of Carrier Corporation, a world leader in air conditioning and refrigeration systems and a member of the UTC business family. Having this unique combination of resources makes UTC Power a highly reliable source for your power generation needs – today and for years to come. Features • Powered by geothermal resource • Renewable energy • No system emissions • Remote control and system monitoring • Factory assembled and tested • Operates on geothermal resource temperatures as low as 165°F(74°C) Benefits • Free fuel • Federal & State incentives • Environmental stewardship • Optimize performance; maximize uptime • High reliability and system availability • Makes unproductive wells viable This System Not Released For Commercial Sale System Description • Geothermal Resource Water from 165°F to 300°F • Electrical Output - geothermal wells - oil and gas well hot water • Liquid or Air Cooling - streams and rivers - evaporative cooling towers - air-cooled condensers • System Flexibility - interconnect up to 40 individual units (74°C to 149°C) - 280kW gross - 225kW net - 480V 3 phase • Site Support - no personnel required on site • Communication - analog phone or internet The manufacturer reserves the right to change or modify, without notice, the design or equipment specifications without incurring any obligation either with respect to equipment previously sold or in the process of construction. The manufacturer does not warranty the data on this document. Warrantied specifications are documented separately. PureCycle® Power System P240 101006 In DevelopmentPDF Image | LAKEVIEW GEOTHERMAL POWER GENERATION FACILITY FEASIBILITY
