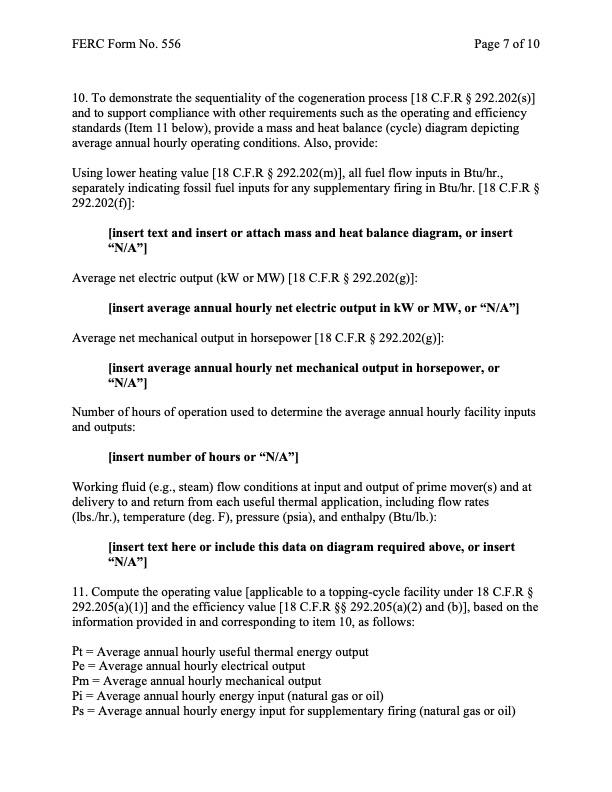

FERC Form No. 556 Page 7 of 10 10. To demonstrate the sequentiality of the cogeneration process [18 C.F.R § 292.202(s)] and to support compliance with other requirements such as the operating and efficiency standards (Item 11 below), provide a mass and heat balance (cycle) diagram depicting average annual hourly operating conditions. Also, provide: Using lower heating value [18 C.F.R § 292.202(m)], all fuel flow inputs in Btu/hr., separately indicating fossil fuel inputs for any supplementary firing in Btu/hr. [18 C.F.R § 292.202(f)]: [insert text and insert or attach mass and heat balance diagram, or insert “N/A”] Average net electric output (kW or MW) [18 C.F.R § 292.202(g)]: [insert average annual hourly net electric output in kW or MW, or “N/A”] Average net mechanical output in horsepower [18 C.F.R § 292.202(g)]: [insert average annual hourly net mechanical output in horsepower, or “N/A”] Number of hours of operation used to determine the average annual hourly facility inputs and outputs: [insert number of hours or “N/A”] Working fluid (e.g., steam) flow conditions at input and output of prime mover(s) and at delivery to and return from each useful thermal application, including flow rates (lbs./hr.), temperature (deg. F), pressure (psia), and enthalpy (Btu/lb.): [insert text here or include this data on diagram required above, or insert “N/A”] 11. Compute the operating value [applicable to a topping-cycle facility under 18 C.F.R § 292.205(a)(1)] and the efficiency value [18 C.F.R §§ 292.205(a)(2) and (b)], based on the information provided in and corresponding to item 10, as follows: Pt = Average annual hourly useful thermal energy output Pe = Average annual hourly electrical output Pm = Average annual hourly mechanical output Pi = Average annual hourly energy input (natural gas or oil) Ps = Average annual hourly energy input for supplementary firing (natural gas or oil)PDF Image | LAKEVIEW GEOTHERMAL POWER GENERATION FACILITY FEASIBILITY
