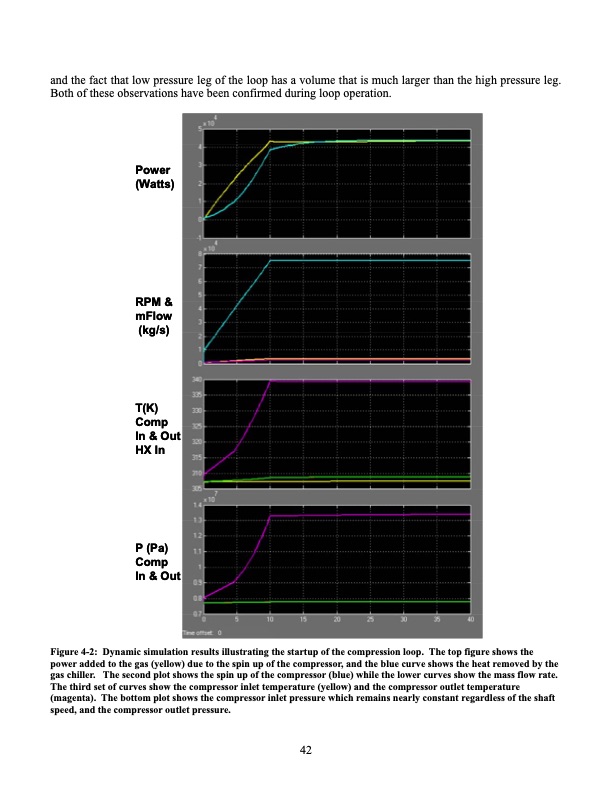

and the fact that low pressure leg of the loop has a volume that is much larger than the high pressure leg. Both of these observations have been confirmed during loop operation. Power (Watts) RPM & mFlow (kg/s) T(K) Comp In & Out HX In P (Pa) Comp In & Out Figure 4-2: Dynamic simulation results illustrating the startup of the compression loop. The top figure shows the power added to the gas (yellow) due to the spin up of the compressor, and the blue curve shows the heat removed by the gas chiller. The second plot shows the spin up of the compressor (blue) while the lower curves show the mass flow rate. The third set of curves show the compressor inlet temperature (yellow) and the compressor outlet temperature (magenta). The bottom plot shows the compressor inlet pressure which remains nearly constant regardless of the shaft speed, and the compressor outlet pressure. 42PDF Image | Operation and Analysis of a Supercritical CO2 Brayton Cycle
