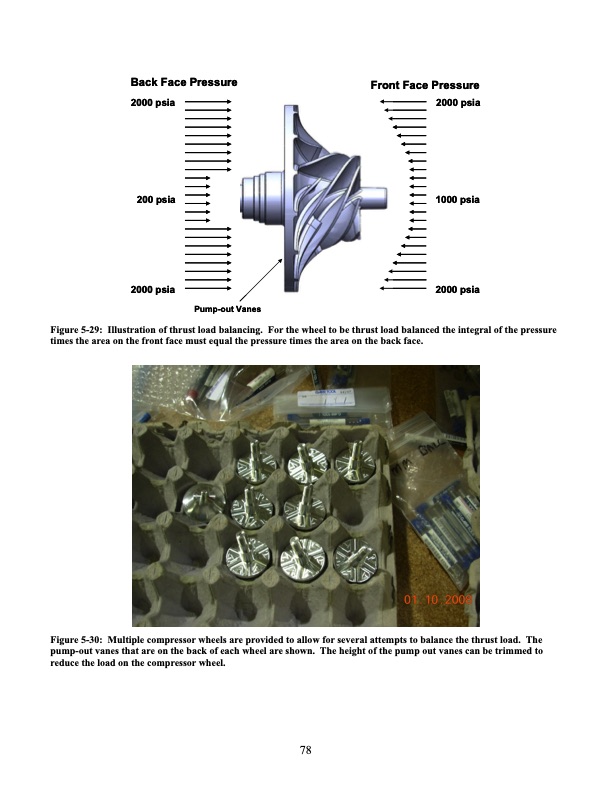

Back Face Pressure 2000 psia Front Face Pressure 2000 psia 1000 psia 2000 psia 200 psia 2000 psia Pump-out Vanes Figure 5-29: Illustration of thrust load balancing. For the wheel to be thrust load balanced the integral of the pressure times the area on the front face must equal the pressure times the area on the back face. Figure 5-30: Multiple compressor wheels are provided to allow for several attempts to balance the thrust load. The pump-out vanes that are on the back of each wheel are shown. The height of the pump out vanes can be trimmed to reduce the load on the compressor wheel. 78PDF Image | Operation and Analysis of a Supercritical CO2 Brayton Cycle
