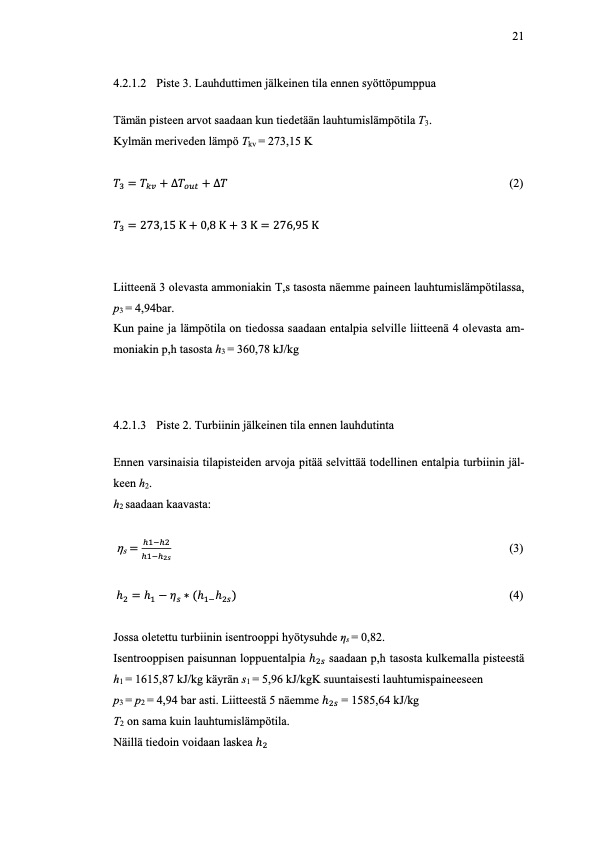

4.2.1.2 Piste 3. Lauhduttimen jälkeinen tila ennen syöttöpumppua Tämän pisteen arvot saadaan kun tiedetään lauhtumislämpötila T3. Kylmän meriveden lämpö Tkv = 273,15 K ∆ ∆ (2) 273,15K0,8K3K 276,95K Liitteenä 3 olevasta ammoniakin T,s tasosta näemme paineen lauhtumislämpötilassa, p3 = 4,94bar. Kun paine ja lämpötila on tiedossa saadaan entalpia selville liitteenä 4 olevasta am- moniakin p,h tasosta h3 = 360,78 kJ/kg 4.2.1.3 Piste 2. Turbiinin jälkeinen tila ennen lauhdutinta Ennen varsinaisia tilapisteiden arvoja pitää selvittää todellinen entalpia turbiinin jäl- keen h2. h2 saadaan kaavasta: ηs (3) (4) Jossa oletettu turbiinin isentrooppi hyötysuhde ηs = 0,82. Isentrooppisen paisunnan loppuentalpia saadaan p,h tasosta kulkemalla pisteestä h1 = 1615,87 kJ/kg käyrän s1 = 5,96 kJ/kgK suuntaisesti lauhtumispaineeseen p3 = p2 = 4,94 bar asti. Liitteestä 5 näemme = 1585,64 kJ/kg T2 on sama kuin lauhtumislämpötila. Näillä tiedoin voidaan laskea 21PDF Image | ORC-TEKNIIKAN MAHDOLLISUUDET YDINVOIMALAN LAUHDE-ENERGIAN
