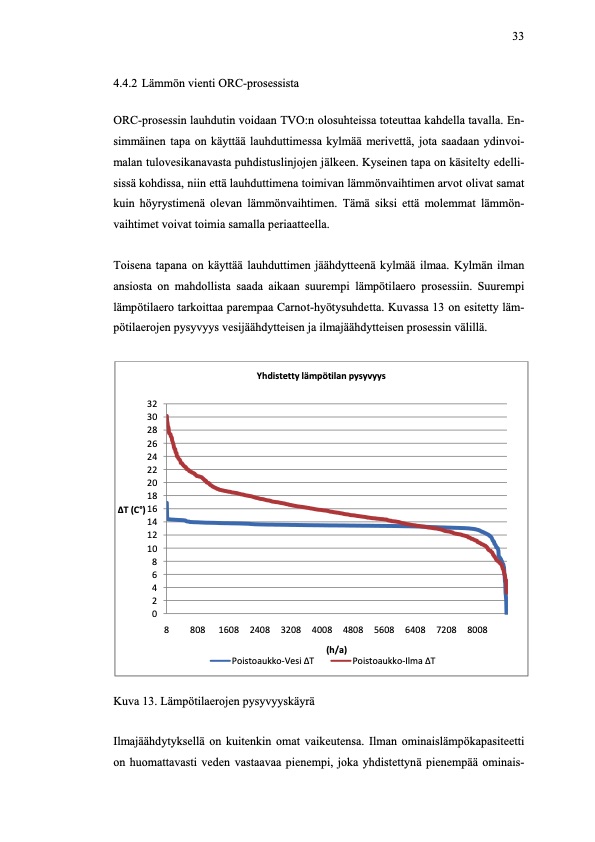

4.4.2 Lämmön vienti ORC-prosessista ORC-prosessin lauhdutin voidaan TVO:n olosuhteissa toteuttaa kahdella tavalla. En- simmäinen tapa on käyttää lauhduttimessa kylmää merivettä, jota saadaan ydinvoi- malan tulovesikanavasta puhdistuslinjojen jälkeen. Kyseinen tapa on käsitelty edelli- sissä kohdissa, niin että lauhduttimena toimivan lämmönvaihtimen arvot olivat samat kuin höyrystimenä olevan lämmönvaihtimen. Tämä siksi että molemmat lämmön- vaihtimet voivat toimia samalla periaatteella. Toisena tapana on käyttää lauhduttimen jäähdytteenä kylmää ilmaa. Kylmän ilman ansiosta on mahdollista saada aikaan suurempi lämpötilaero prosessiin. Suurempi lämpötilaero tarkoittaa parempaa Carnot-hyötysuhdetta. Kuvassa 13 on esitetty läm- pötilaerojen pysyvyys vesijäähdytteisen ja ilmajäähdytteisen prosessin välillä. 33 32 30 28 26 24 22 20 18 ∆T (C°) 16 14 12 10 8 6 4 2 0 Yhdistetty lämpötilan pysyvyys 8 808 1608 2408 Poistoaukko‐Vesi ∆T 6408 7208 8008 Poistoaukko‐Ilma ∆T 3208 4008 4808 5608 (h/a) Kuva 13. Lämpötilaerojen pysyvyyskäyrä Ilmajäähdytyksellä on kuitenkin omat vaikeutensa. Ilman ominaislämpökapasiteetti on huomattavasti veden vastaavaa pienempi, joka yhdistettynä pienempää ominais-PDF Image | ORC-TEKNIIKAN MAHDOLLISUUDET YDINVOIMALAN LAUHDE-ENERGIAN
