Text from PDF Page: 040

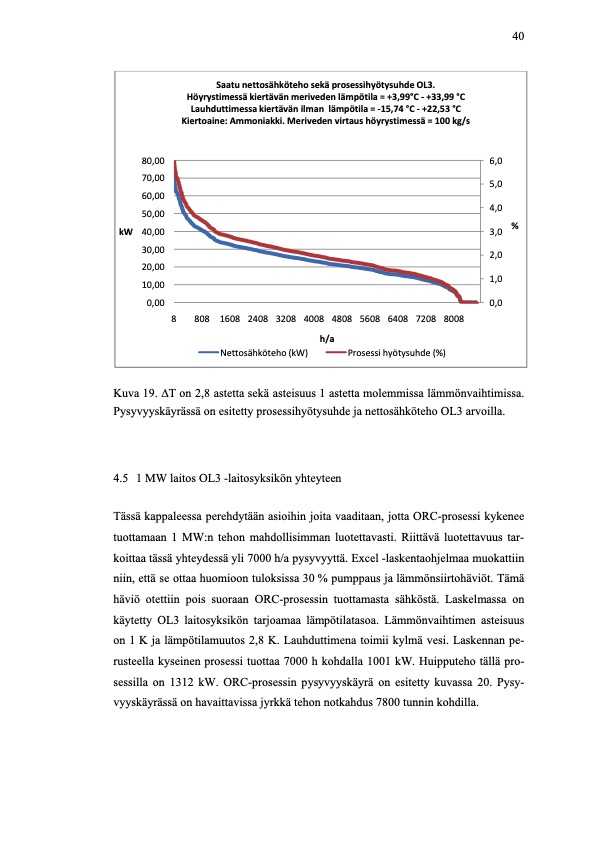

40 Saatu nettosähköteho sekä prosessihyötysuhde OL3. Höyrystimessä kiertävän meriveden lämpötila = +3,99°C ‐ +33,99 °C Lauhduttimessa kiertävän ilman lämpötila = ‐15,74 °C ‐ +22,53 °C Kiertoaine: Ammoniakki. Meriveden virtaus höyrystimessä = 100 kg/s 80,00 6,0 70,00 60,00 50,00 5,0 4,0 kW 40,00 3,0 % 30,00 20,00 10,00 2,0 1,0 0,00 0,0 8 808 1608 2408 3208 4008 4808 5608 6408 7208 8008 h/a Nettosähköteho (kW) Prosessi hyötysuhde (%) Kuva 19. ∆T on 2,8 astetta sekä asteisuus 1 astetta molemmissa lämmönvaihtimissa. Pysyvyyskäyrässä on esitetty prosessihyötysuhde ja nettosähköteho OL3 arvoilla. 4.5 1 MW laitos OL3 -laitosyksikön yhteyteen Tässä kappaleessa perehdytään asioihin joita vaaditaan, jotta ORC-prosessi kykenee tuottamaan 1 MW:n tehon mahdollisimman luotettavasti. Riittävä luotettavuus tar- koittaa tässä yhteydessä yli 7000 h/a pysyvyyttä. Excel -laskentaohjelmaa muokattiin niin, että se ottaa huomioon tuloksissa 30 % pumppaus ja lämmönsiirtohäviöt. Tämä häviö otettiin pois suoraan ORC-prosessin tuottamasta sähköstä. Laskelmassa on käytetty OL3 laitosyksikön tarjoamaa lämpötilatasoa. Lämmönvaihtimen asteisuus on 1 K ja lämpötilamuutos 2,8 K. Lauhduttimena toimii kylmä vesi. Laskennan pe- rusteella kyseinen prosessi tuottaa 7000 h kohdalla 1001 kW. Huipputeho tällä pro- sessilla on 1312 kW. ORC-prosessin pysyvyyskäyrä on esitetty kuvassa 20. Pysy- vyyskäyrässä on havaittavissa jyrkkä tehon notkahdus 7800 tunnin kohdilla.
