PDF Publication Title:
Text from PDF Page: 041

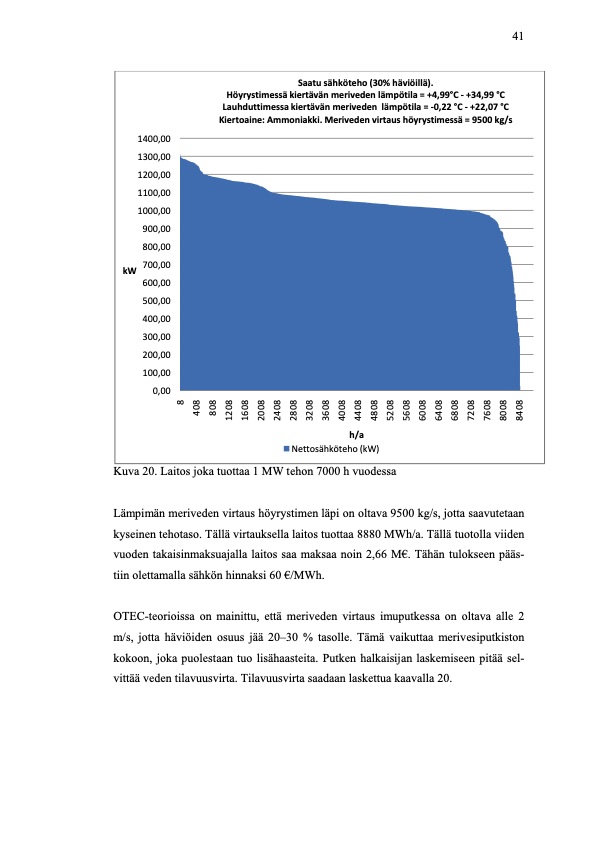

1400,00 1300,00 1200,00 1100,00 1000,00 900,00 800,00 kW 700,00 600,00 500,00 400,00 300,00 200,00 100,00 0,00 Saatu sähköteho (30% häviöillä). Höyrystimessä kiertävän meriveden lämpötila = +4,99°C ‐ +34,99 °C Lauhduttimessa kiertävän meriveden lämpötila = ‐0,22 °C ‐ +22,07 °C Kiertoaine: Ammoniakki. Meriveden virtaus höyrystimessä = 9500 kg/s 41 8 408 808 1208 1608 2008 2408 2808 3208 3608 4008 4408 4808 5208 5608 6008 6408 6808 7208 7608 8008 8408 h/a Nettosähköteho (kW) Kuva 20. Laitos joka tuottaa 1 MW tehon 7000 h vuodessa Lämpimän meriveden virtaus höyrystimen läpi on oltava 9500 kg/s, jotta saavutetaan kyseinen tehotaso. Tällä virtauksella laitos tuottaa 8880 MWh/a. Tällä tuotolla viiden vuoden takaisinmaksuajalla laitos saa maksaa noin 2,66 M€. Tähän tulokseen pääs- tiin olettamalla sähkön hinnaksi 60 €/MWh. OTEC-teorioissa on mainittu, että meriveden virtaus imuputkessa on oltava alle 2 m/s, jotta häviöiden osuus jää 20–30 % tasolle. Tämä vaikuttaa merivesiputkiston kokoon, joka puolestaan tuo lisähaasteita. Putken halkaisijan laskemiseen pitää sel- vittää veden tilavuusvirta. Tilavuusvirta saadaan laskettua kaavalla 20.PDF Image | ORC-TEKNIIKAN MAHDOLLISUUDET YDINVOIMALAN LAUHDE-ENERGIAN
PDF Search Title:
ORC-TEKNIIKAN MAHDOLLISUUDET YDINVOIMALAN LAUHDE-ENERGIANOriginal File Name Searched:
Lammela_Antti.pdfDIY PDF Search: Google It | Yahoo | Bing
