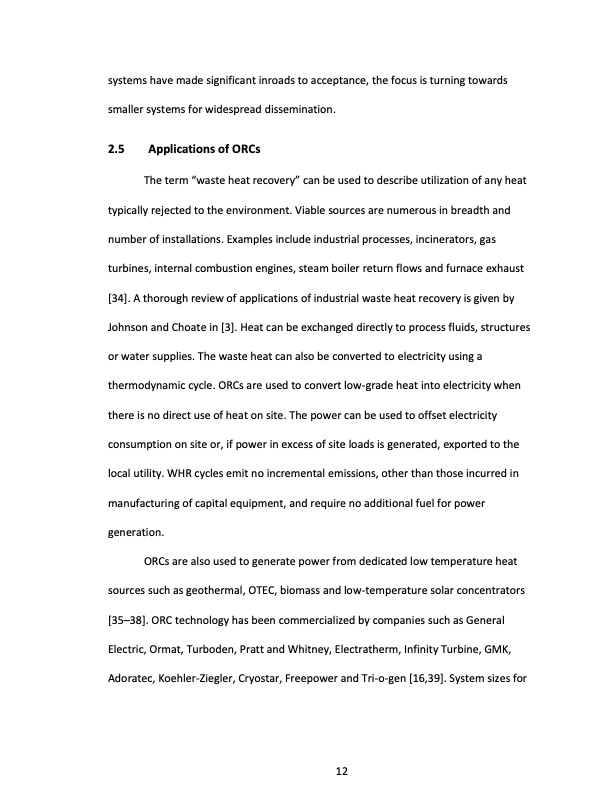

Text from PDF Page: 024
systems have made significant inroads to acceptance, the focus is turning towards smaller systems for widespread dissemination. 2.5 Applications of ORCs The term “waste heat recovery” can be used to describe utilization of any heat typically rejected to the environment. Viable sources are numerous in breadth and number of installations. Examples include industrial processes, incinerators, gas turbines, internal combustion engines, steam boiler return flows and furnace exhaust [34]. A thorough review of applications of industrial waste heat recovery is given by Johnson and Choate in [3]. Heat can be exchanged directly to process fluids, structures or water supplies. The waste heat can also be converted to electricity using a thermodynamic cycle. ORCs are used to convert low-grade heat into electricity when there is no direct use of heat on site. The power can be used to offset electricity consumption on site or, if power in excess of site loads is generated, exported to the local utility. WHR cycles emit no incremental emissions, other than those incurred in manufacturing of capital equipment, and require no additional fuel for power generation. ORCs are also used to generate power from dedicated low temperature heat sources such as geothermal, OTEC, biomass and low-temperature solar concentrators [35–38]. ORC technology has been commercialized by companies such as General Electric, Ormat, Turboden, Pratt and Whitney, Electratherm, Infinity Turbine, GMK, Adoratec, Koehler-Ziegler, Cryostar, Freepower and Tri-o-gen [16,39]. System sizes for 12PDF Image | ORC WASTE HEAT RECOVERY SYSTEM WITH A TESLA-HYBRID
