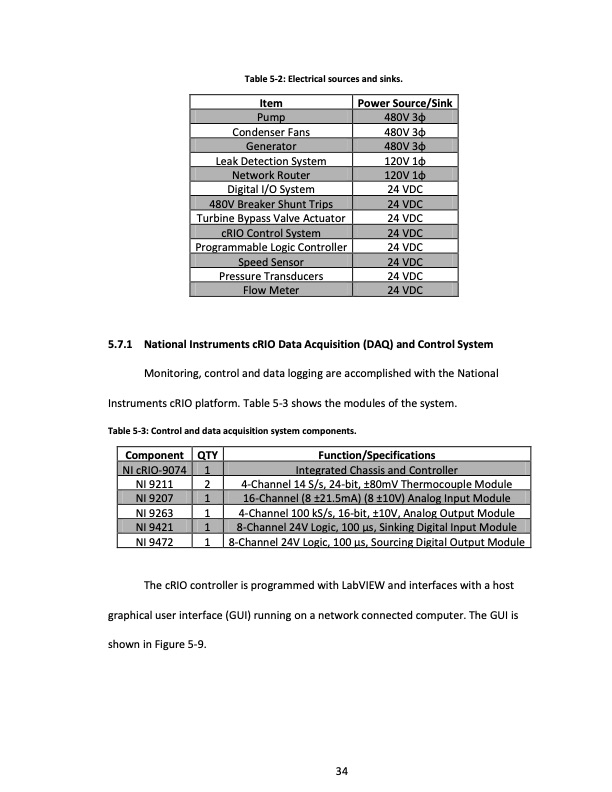

Table 5-2: Electrical sources and sinks. Item Condenser Fans Leak Detection System Digital I/O System Turbine Bypass Valve Actuator Programmable Logic Controller Pressure Transducers Power Source/Sink 480V 3φ 120V 1φ 24 VDC 24 VDC 24 VDC 24 VDC Pump 480V 3φ Generator 480V 3φ Network Router 120V 1φ 480V Breaker Shunt Trips 24 VDC cRIO Control System 24 VDC Speed Sensor 24 VDC Flow Meter 24 VDC 5.7.1 National Instruments cRIO Data Acquisition (DAQ) and Control System Monitoring, control and data logging are accomplished with the National Instruments cRIO platform. Table 5-3 shows the modules of the system. Table 5-3: Control and data acquisition system components. Component QTY Function/Specifications Integrated Chassis and Controller 4-Channel 14 S/s, 24-bit, ±80mV Thermocouple Module 16-Channel (8 ±21.5mA) (8 ±10V) Analog Input Module 4-Channel 100 kS/s, 16-bit, ±10V, Analog Output Module 8-Channel 24V Logic, 100 μs, Sinking Digital Input Module 8-Channel 24V Logic, 100 μs, Sourcing Digital Output Module NI cRIO-9074 NI 9211 NI 9207 NI 9263 NI 9421 NI 9472 1 2 1 1 1 1 The cRIO controller is programmed with LabVIEW and interfaces with a host graphical user interface (GUI) running on a network connected computer. The GUI is shown in Figure 5-9. 34PDF Image | ORC WASTE HEAT RECOVERY SYSTEM WITH A TESLA-HYBRID
