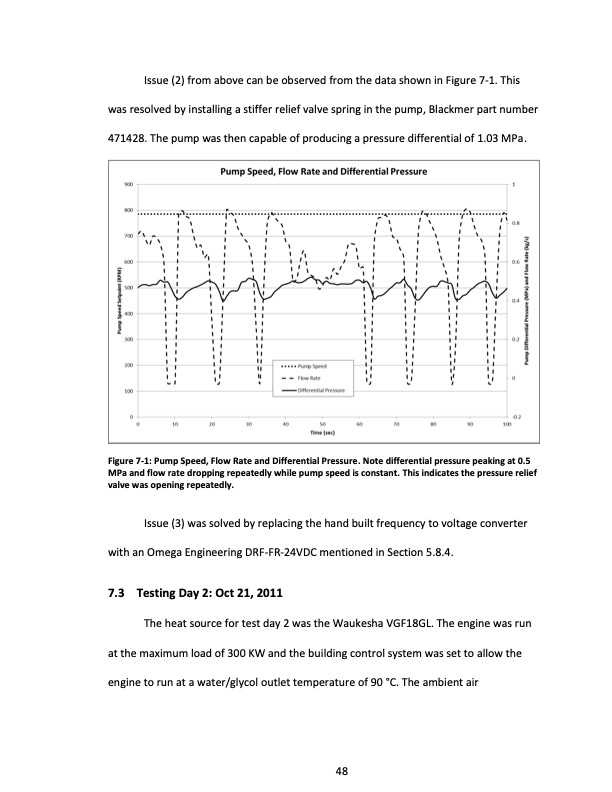

Issue (2) from above can be observed from the data shown in Figure 7-1. This was resolved by installing a stiffer relief valve spring in the pump, Blackmer part number 471428. The pump was then capable of producing a pressure differential of 1.03 MPa. Figure 7-1: Pump Speed, Flow Rate and Differential Pressure. Note differential pressure peaking at 0.5 MPa and flow rate dropping repeatedly while pump speed is constant. This indicates the pressure relief valve was opening repeatedly. Issue (3) was solved by replacing the hand built frequency to voltage converter with an Omega Engineering DRF-FR-24VDC mentioned in Section 5.8.4. 7.3 Testing Day 2: Oct 21, 2011 The heat source for test day 2 was the Waukesha VGF18GL. The engine was run at the maximum load of 300 KW and the building control system was set to allow the engine to run at a water/glycol outlet temperature of 90 °C. The ambient air 48PDF Image | ORC WASTE HEAT RECOVERY SYSTEM WITH A TESLA-HYBRID
