PDF Publication Title:
Text from PDF Page: 052

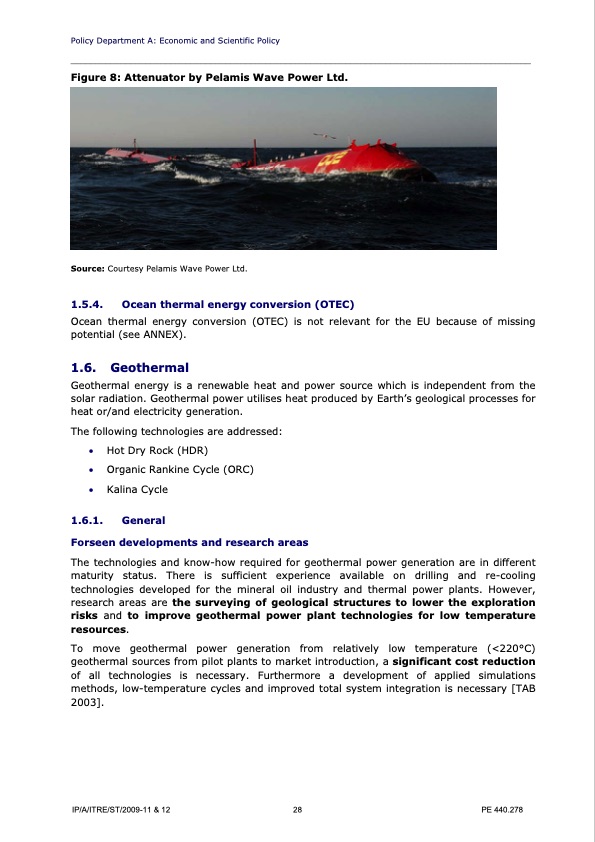

Policy Department A: Economic and Scientific Policy ____________________________________________________________________________________________ Figure 8: Attenuator by Pelamis Wave Power Ltd. Source: Courtesy Pelamis Wave Power Ltd. 1.5.4. Ocean thermal energy conversion (OTEC) Ocean thermal energy conversion (OTEC) is not relevant for the EU because of missing potential (see ANNEX). 1.6. Geothermal Geothermal energy is a renewable heat and power source which is independent from the solar radiation. Geothermal power utilises heat produced by Earth’s geological processes for heat or/and electricity generation. The following technologies are addressed: • Hot Dry Rock (HDR) • Organic Rankine Cycle (ORC) • Kalina Cycle 1.6.1. General Forseen developments and research areas The technologies and know-how required for geothermal power generation are in different maturity status. There is sufficient experience available on drilling and re-cooling technologies developed for the mineral oil industry and thermal power plants. However, research areas are the surveying of geological structures to lower the exploration risks and to improve geothermal power plant technologies for low temperature resources. To move geothermal power generation from relatively low temperature (<220°C) geothermal sources from pilot plants to market introduction, a significant cost reduction of all technologies is necessary. Furthermore a development of applied simulations methods, low-temperature cycles and improved total system integration is necessary [TAB 2003]. IP/A/ITRE/ST/2009-11 & 12 28 PE 440.278PDF Image | Policy Department Renewable Technologies
PDF Search Title:
Policy Department Renewable TechnologiesOriginal File Name Searched:
IPOL_ITRE_ET(2010)440278_EN.pdfDIY PDF Search: Google It | Yahoo | Bing
