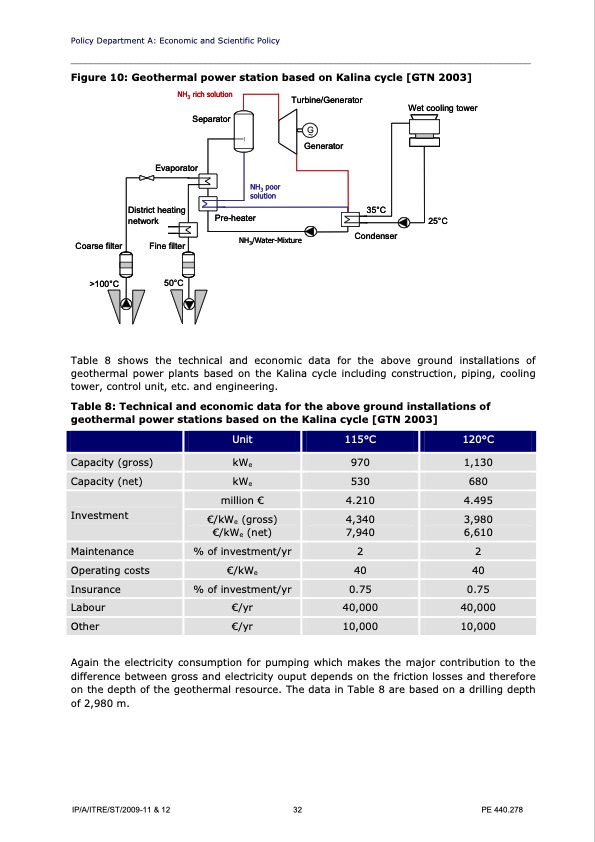

Policy Department A: Economic and Scientific Policy ____________________________________________________________________________________________ Figure 10: Geothermal power station based on Kalina cycle [GTN 2003] NH3 rich solution Separator Turbine/Generator G Generator 35°C Condenser Table 8 shows the technical and economic data for the above ground installations of geothermal power plants based on the Kalina cycle including construction, piping, cooling tower, control unit, etc. and engineering. Table 8: Technical and economic data for the above ground installations of geothermal power stations based on the Kalina cycle [GTN 2003] ) ∼ Wet cooling tower 25°C Evaporator District heating network Fine filter 50°C NH3 poor solution Coarse filter >100°C Pre-heater NH3/Water-Mixture Unit 115°C 120°C Capacity (gross) kWe 970 1,130 Capacity (net) kWe 530 680 Investment million € 4.210 4.495 €/kWe (gross) €/kWe (net) 4,340 7,940 3,980 6,610 Maintenance % of investment/yr 2 2 Operating costs €/kWe 40 40 Insurance % of investment/yr 0.75 0.75 Labour €/yr 40,000 40,000 Other €/yr 10,000 10,000 Again the electricity consumption for pumping which makes the major contribution to the difference between gross and electricity ouput depends on the friction losses and therefore on the depth of the geothermal resource. The data in Table 8 are based on a drilling depth of 2,980 m. IP/A/ITRE/ST/2009-11 & 12 32 PE 440.278PDF Image | Policy Department Renewable Technologies
