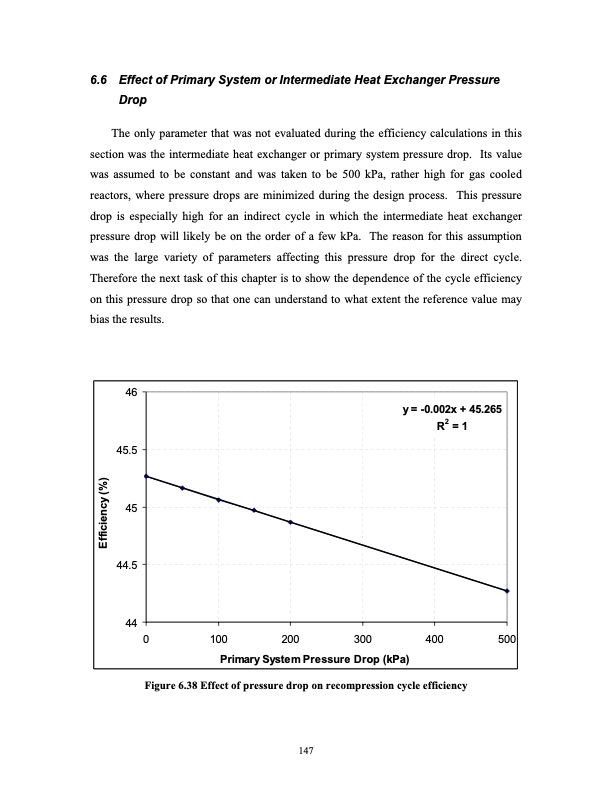

6.6 Effect of Primary System or Intermediate Heat Exchanger Pressure Drop The only parameter that was not evaluated during the efficiency calculations in this section was the intermediate heat exchanger or primary system pressure drop. Its value was assumed to be constant and was taken to be 500 kPa, rather high for gas cooled reactors, where pressure drops are minimized during the design process. This pressure drop is especially high for an indirect cycle in which the intermediate heat exchanger pressure drop will likely be on the order of a few kPa. The reason for this assumption was the large variety of parameters affecting this pressure drop for the direct cycle. Therefore the next task of this chapter is to show the dependence of the cycle efficiency on this pressure drop so that one can understand to what extent the reference value may bias the results. 46 45.5 45 44.5 44 y = -0.002x + 45.265 R2 = 1 0 100 200 300 400 500 Primary System Pressure Drop (kPa) Figure 6.38 Effect of pressure drop on recompression cycle efficiency 147 Efficiency (%)PDF Image | Supercritical Carbon Dioxide Cycle for Next Generation Nuclear Reactors
