PDF Publication Title:
Text from PDF Page: 004

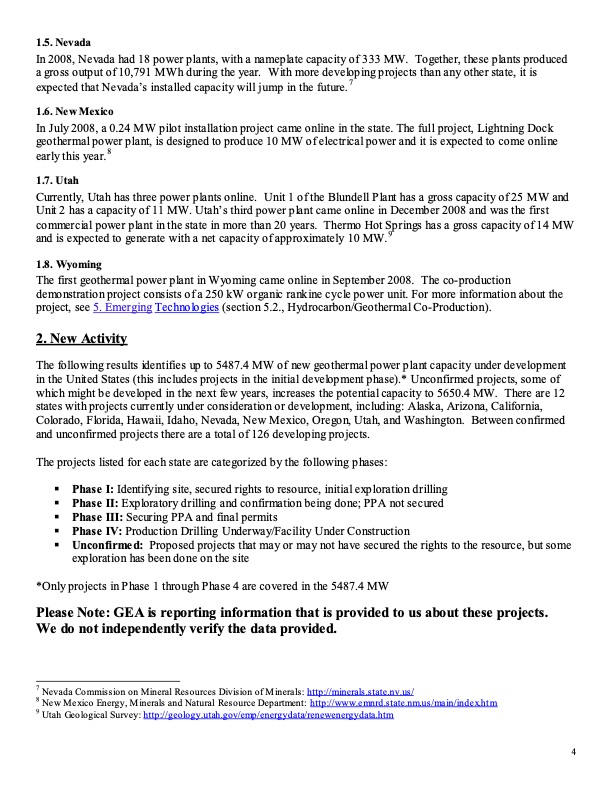

1.5. Nevada In 2008, Nevada had 18 power plants, with a nameplate capacity of 333 MW. Together, these plants produced agrossoutputof10,791MWhduringtheyear. Withmoredevelopingprojectsthananyotherstate,itis expected that Nevada‟s installed capacity will jump in the future. 7 1.6.NewMexico In July 2008, a 0.24 MW pilot installation project came online in the state. The full project, Lightning Dock geothermal power plant, is designed to produce 10 MW of electrical power and it is expected to come online early this year.8 1.7. Utah Currently, Utah has three power plants online. Unit 1 of the Blundell Plant has a gross capacity of 25 MW and Unit 2 has a capacity of 11 MW. Utah‟s third power plant came online in December 2008 and was the first commercial power plant in the state in more than 20 years. Thermo Hot Springs has a gross capacity of 14 MW and is expected to generate with a net capacity of approximately 10 MW.9 1.8. Wyoming The first geothermal power plant in Wyoming came online in September 2008. The co-production demonstration project consists of a 250 kW organic rankine cycle power unit. For more information about the project, see 5. Emerging Technologies (section 5.2., Hydrocarbon/Geothermal Co-Production). 2. New Activity The following results identifies up to 5487.4 MW of new geothermal power plant capacity under development in the United States (this includes projects in the initial development phase).* Unconfirmed projects, some of which might be developed in the next few years, increases the potential capacity to 5650.4 MW. There are 12 states with projects currently under consideration or development, including: Alaska, Arizona, California, Colorado, Florida, Hawaii, Idaho, Nevada, New Mexico, Oregon, Utah, and Washington. and unconfirmed projects there are a total of 126 developing projects. The projects listed for each state are categorized by the following phases: Phase I: Identifying site, secured rights to resource, initial exploration drilling Phase II: Exploratory drilling and confirmation being done; PPA not secured Phase III: Securing PPA and final permits Phase IV: Production Drilling Underway/Facility Under Construction Between confirmed Unconfirmed: Proposed projects that may or may not have secured the rights to the resource, but some exploration has been done on the site *Only projects in Phase 1 through Phase 4 are covered in the 5487.4 MW Please Note: GEA is reporting information that is provided to us about these projects. We do not independently verify the data provided. 7 Nevada Commission on Mineral Resources Division of Minerals: http://minerals.state.nv.us/ 8 New Mexico Energy, Minerals and Natural Resource Department: http://www.emnrd.state.nm.us/main/index.htm 9 Utah Geo logical Survey: http://geology.utah.gov/emp/energydata/renewenergydata.htm 4PDF Image | U.S. Geothermal Power Production and Development
PDF Search Title:
U.S. Geothermal Power Production and DevelopmentOriginal File Name Searched:
Industry_Update_March_Final.pdfDIY PDF Search: Google It | Yahoo | Bing
