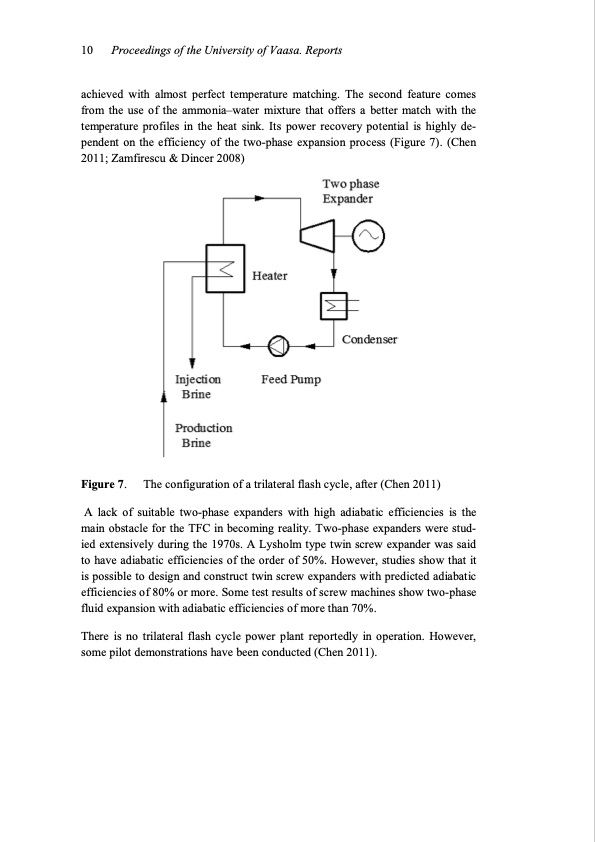

10 Proceedings of the University of Vaasa. Reports achieved with almost perfect temperature matching. The second feature comes from the use of the ammonia–water mixture that offers a better match with the temperature profiles in the heat sink. Its power recovery potential is highly de- pendent on the efficiency of the two-phase expansion process (Figure 7). (Chen 2011; Zamfirescu & Dincer 2008) Figure 7. The configuration of a trilateral flash cycle, after (Chen 2011) A lack of suitable two-phase expanders with high adiabatic efficiencies is the main obstacle for the TFC in becoming reality. Two-phase expanders were stud- ied extensively during the 1970s. A Lysholm type twin screw expander was said to have adiabatic efficiencies of the order of 50%. However, studies show that it is possible to design and construct twin screw expanders with predicted adiabatic efficiencies of 80% or more. Some test results of screw machines show two-phase fluid expansion with adiabatic efficiencies of more than 70%. There is no trilateral flash cycle power plant reportedly in operation. However, some pilot demonstrations have been conducted (Chen 2011).PDF Image | Waste Heat Recovery Bottoming Cycle Alternatives
