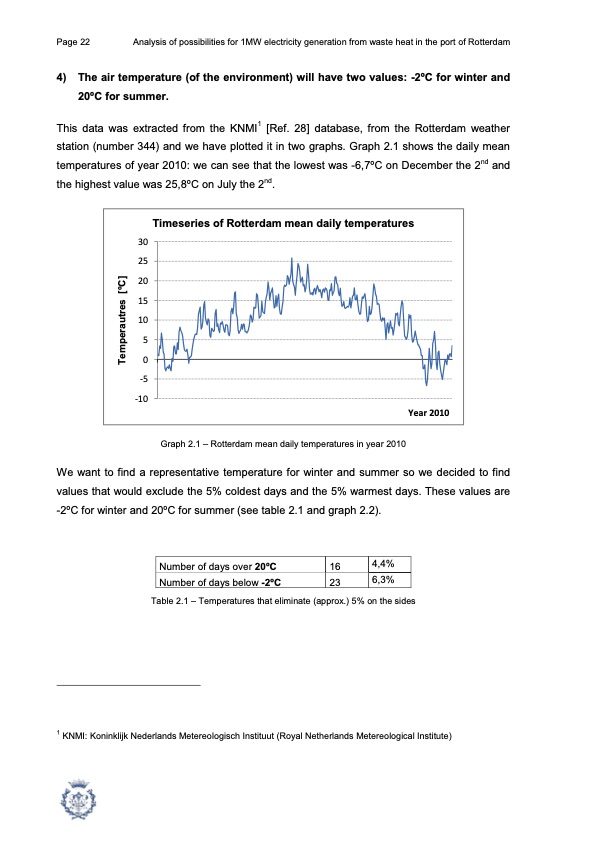

Page 22 Analysis of possibilities for 1MW electricity generation from waste heat in the port of Rotterdam 4) The air temperature (of the environment) will have two values: -2oC for winter and 20oC for summer. This data was extracted from the KNMI1 [Ref. 28] database, from the Rotterdam weather station (number 344) and we have plotted it in two graphs. Graph 2.1 shows the daily mean temperatures of year 2010: we can see that the lowest was -6,7oC on December the 2nd and the highest value was 25,8oC on July the 2nd. Timeseries of Rotterdam mean daily temperatures 30 25 20 15 10 5 0 -5 -10 Temperautres [oC] Graph 2.1 – Rotterdam mean daily temperatures in year 2010 We want to find a representative temperature for winter and summer so we decided to find values that would exclude the 5% coldest days and the 5% warmest days. These values are -2oC for winter and 20oC for summer (see table 2.1 and graph 2.2). Number of days over 20oC 16 Number of days below -2oC 23 4,4% 6,3% Table 2.1 – Temperatures that eliminate (approx.) 5% on the sides 1 KNMI: Koninklijk Nederlands Metereologisch Instituut (Royal Netherlands Metereological Institute) Year 2010PDF Image | 1MW electricity generation from waste heat port of Rotterdam
