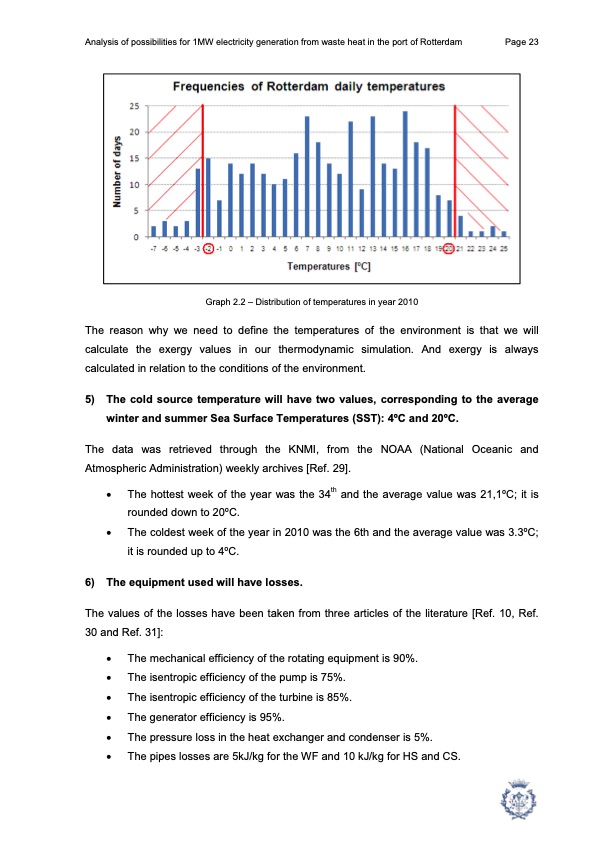

Analysis of possibilities for 1MW electricity generation from waste heat in the port of Rotterdam Page 23 Graph 2.2 – Distribution of temperatures in year 2010 The reason why we need to define the temperatures of the environment is that we will calculate the exergy values in our thermodynamic simulation. And exergy is always calculated in relation to the conditions of the environment. 5) The cold source temperature will have two values, corresponding to the average winter and summer Sea Surface Temperatures (SST): 4oC and 20oC. The data was retrieved through the KNMI, from the NOAA (National Oceanic and Atmospheric Administration) weekly archives [Ref. 29]. • The hottest week of the year was the 34th and the average value was 21,1oC; it is rounded down to 20oC. • The coldest week of the year in 2010 was the 6th and the average value was 3.3oC; it is rounded up to 4oC. 6) The equipment used will have losses. The values of the losses have been taken from three articles of the literature [Ref. 10, Ref. 30 and Ref. 31]: • The mechanical efficiency of the rotating equipment is 90%. • The isentropic efficiency of the pump is 75%. • The isentropic efficiency of the turbine is 85%. • The generator efficiency is 95%. • The pressure loss in the heat exchanger and condenser is 5%. • The pipes losses are 5kJ/kg for the WF and 10 kJ/kg for HS and CS.PDF Image | 1MW electricity generation from waste heat port of Rotterdam
