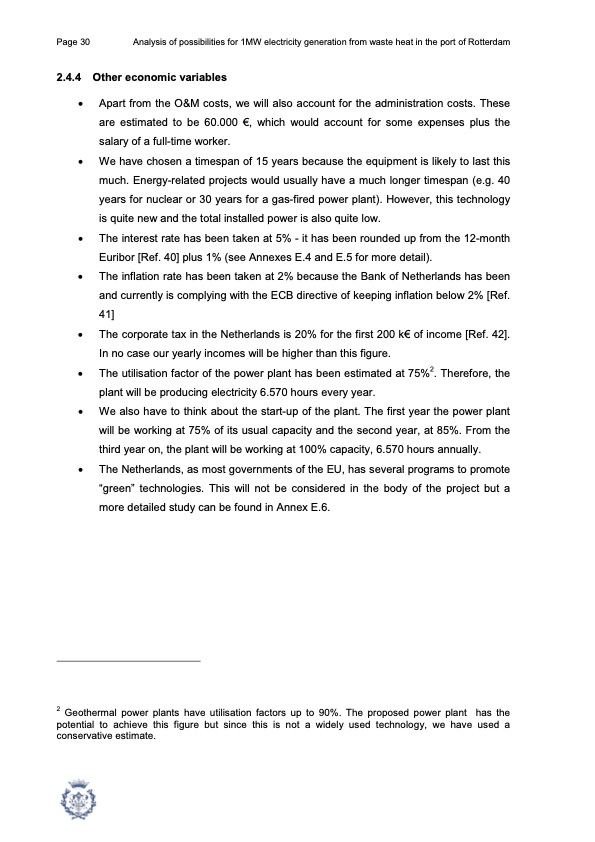

Page 30 Analysis of possibilities for 1MW electricity generation from waste heat in the port of Rotterdam 2.4.4 • • • • • • • • Other economic variables Apart from the O&M costs, we will also account for the administration costs. These are estimated to be 60.000 €, which would account for some expenses plus the salary of a full-time worker. We have chosen a timespan of 15 years because the equipment is likely to last this much. Energy-related projects would usually have a much longer timespan (e.g. 40 years for nuclear or 30 years for a gas-fired power plant). However, this technology is quite new and the total installed power is also quite low. The interest rate has been taken at 5% - it has been rounded up from the 12-month Euribor [Ref. 40] plus 1% (see Annexes E.4 and E.5 for more detail). The inflation rate has been taken at 2% because the Bank of Netherlands has been and currently is complying with the ECB directive of keeping inflation below 2% [Ref. 41] The corporate tax in the Netherlands is 20% for the first 200 k€ of income [Ref. 42]. In no case our yearly incomes will be higher than this figure. The utilisation factor of the power plant has been estimated at 75%2. Therefore, the plant will be producing electricity 6.570 hours every year. We also have to think about the start-up of the plant. The first year the power plant will be working at 75% of its usual capacity and the second year, at 85%. From the third year on, the plant will be working at 100% capacity, 6.570 hours annually. The Netherlands, as most governments of the EU, has several programs to promote “green” technologies. This will not be considered in the body of the project but a more detailed study can be found in Annex E.6. 2 Geothermal power plants have utilisation factors up to 90%. The proposed power plant has the potential to achieve this figure but since this is not a widely used technology, we have used a conservative estimate.PDF Image | 1MW electricity generation from waste heat port of Rotterdam
