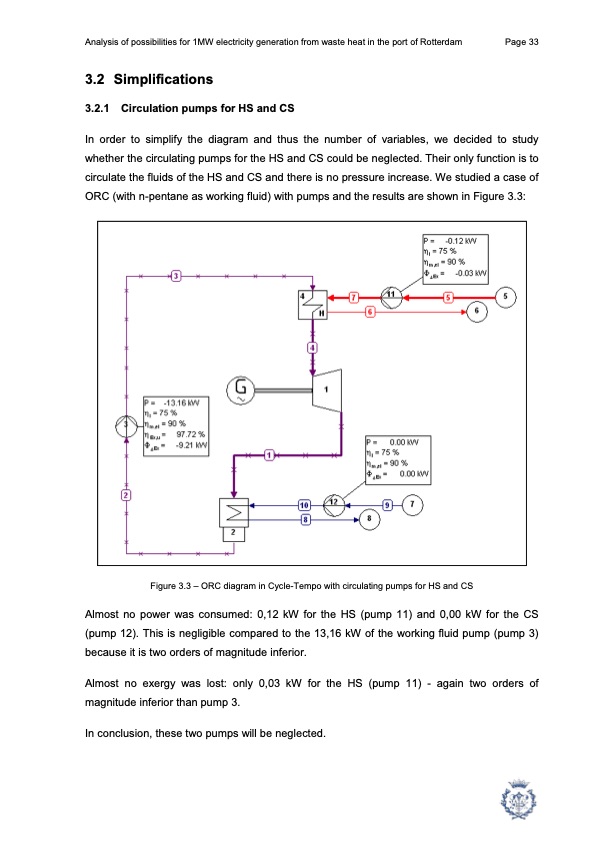

Analysis of possibilities for 1MW electricity generation from waste heat in the port of Rotterdam Page 33 3.2 Simplifications 3.2.1 Circulation pumps for HS and CS In order to simplify the diagram and thus the number of variables, we decided to study whether the circulating pumps for the HS and CS could be neglected. Their only function is to circulate the fluids of the HS and CS and there is no pressure increase. We studied a case of ORC (with n-pentane as working fluid) with pumps and the results are shown in Figure 3.3: Figure 3.3 – ORC diagram in Cycle-Tempo with circulating pumps for HS and CS Almost no power was consumed: 0,12 kW for the HS (pump 11) and 0,00 kW for the CS (pump 12). This is negligible compared to the 13,16 kW of the working fluid pump (pump 3) because it is two orders of magnitude inferior. Almost no exergy was lost: only 0,03 kW for the HS (pump 11) - again two orders of magnitude inferior than pump 3. In conclusion, these two pumps will be neglected.PDF Image | 1MW electricity generation from waste heat port of Rotterdam
