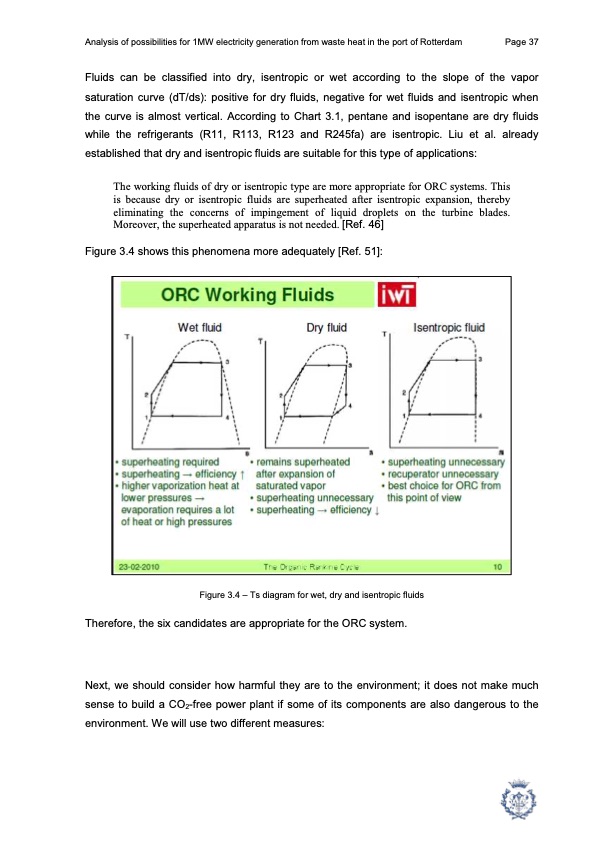

Analysis of possibilities for 1MW electricity generation from waste heat in the port of Rotterdam Page 37 Fluids can be classified into dry, isentropic or wet according to the slope of the vapor saturation curve (dT/ds): positive for dry fluids, negative for wet fluids and isentropic when the curve is almost vertical. According to Chart 3.1, pentane and isopentane are dry fluids while the refrigerants (R11, R113, R123 and R245fa) are isentropic. Liu et al. already established that dry and isentropic fluids are suitable for this type of applications: The working fluids of dry or isentropic type are more appropriate for ORC systems. This is because dry or isentropic fluids are superheated after isentropic expansion, thereby eliminating the concerns of impingement of liquid droplets on the turbine blades. Moreover, the superheated apparatus is not needed. [Ref. 46] Figure 3.4 shows this phenomena more adequately [Ref. 51]: Figure 3.4 – Ts diagram for wet, dry and isentropic fluids Therefore, the six candidates are appropriate for the ORC system. Next, we should consider how harmful they are to the environment; it does not make much sense to build a CO2-free power plant if some of its components are also dangerous to the environment. We will use two different measures:
