Text from PDF Page: 081

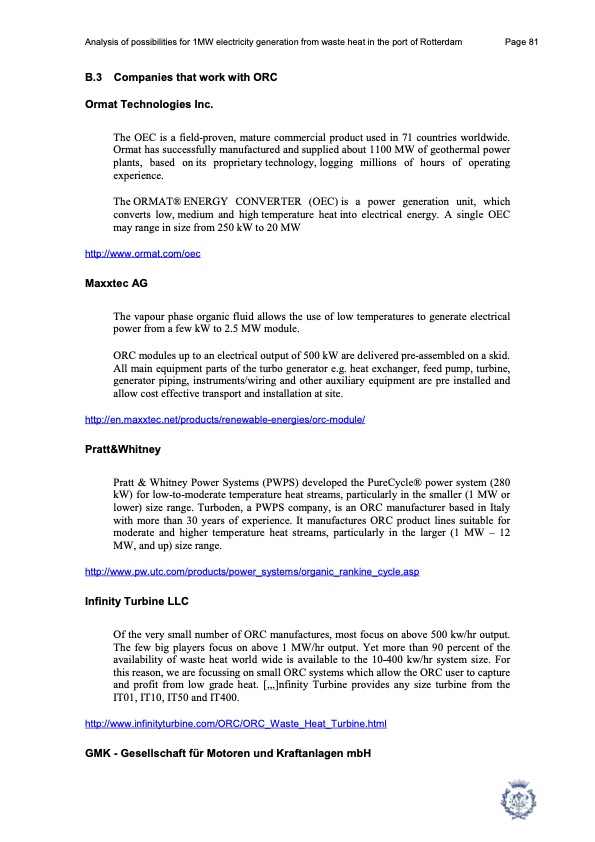

Analysis of possibilities for 1MW electricity generation from waste heat in the port of Rotterdam Page 81 B.3 Companies that work with ORC Ormat Technologies Inc. The OEC is a field-proven, mature commercial product used in 71 countries worldwide. Ormat has successfully manufactured and supplied about 1100 MW of geothermal power plants, based on its proprietary technology, logging millions of hours of operating experience. The ORMAT® ENERGY CONVERTER (OEC) is a power generation unit, which converts low, medium and high temperature heat into electrical energy. A single OEC may range in size from 250 kW to 20 MW http://www.ormat.com/oec Maxxtec AG The vapour phase organic fluid allows the use of low temperatures to generate electrical power from a few kW to 2.5 MW module. ORC modules up to an electrical output of 500 kW are delivered pre-assembled on a skid. All main equipment parts of the turbo generator e.g. heat exchanger, feed pump, turbine, generator piping, instruments/wiring and other auxiliary equipment are pre installed and allow cost effective transport and installation at site. http://en.maxxtec.net/products/renewable-energies/orc-module/ Pratt&Whitney Pratt & Whitney Power Systems (PWPS) developed the PureCycle® power system (280 kW) for low-to-moderate temperature heat streams, particularly in the smaller (1 MW or lower) size range. Turboden, a PWPS company, is an ORC manufacturer based in Italy with more than 30 years of experience. It manufactures ORC product lines suitable for moderate and higher temperature heat streams, particularly in the larger (1 MW – 12 MW, and up) size range. http://www.pw.utc.com/products/power_systems/organic_rankine_cycle.asp Infinity Turbine LLC Of the very small number of ORC manufactures, most focus on above 500 kw/hr output. The few big players focus on above 1 MW/hr output. Yet more than 90 percent of the availability of waste heat world wide is available to the 10-400 kw/hr system size. For this reason, we are focussing on small ORC systems which allow the ORC user to capture and profit from low grade heat. [,,,]nfinity Turbine provides any size turbine from the IT01, IT10, IT50 and IT400. http://www.infinityturbine.com/ORC/ORC_Waste_Heat_Turbine.html GMK - Gesellschaft für Motoren und Kraftanlagen mbHPDF Image | 1MW electricity generation from waste heat port of Rotterdam
