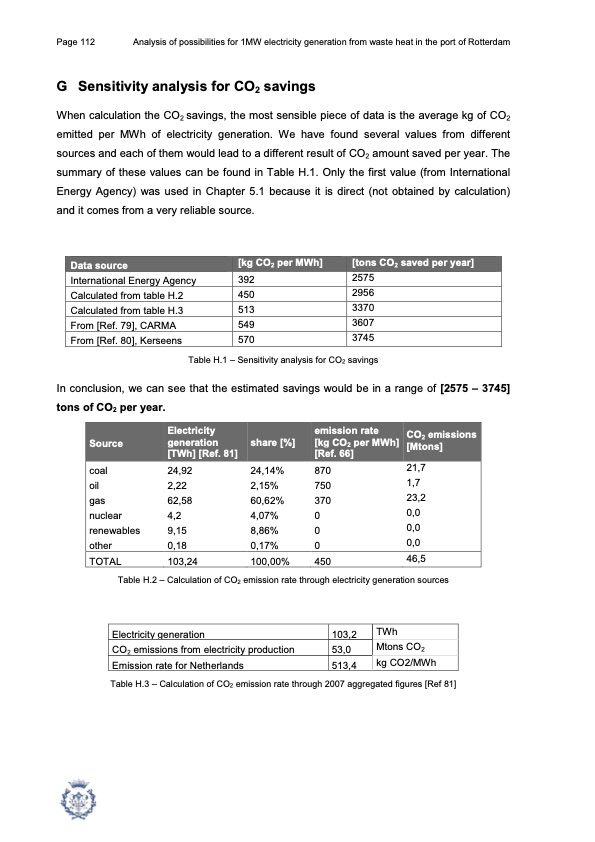

Page 112 Analysis of possibilities for 1MW electricity generation from waste heat in the port of Rotterdam G Sensitivity analysis for CO2 savings When calculation the CO2 savings, the most sensible piece of data is the average kg of CO2 emitted per MWh of electricity generation. We have found several values from different sources and each of them would lead to a different result of CO2 amount saved per year. The summary of these values can be found in Table H.1. Only the first value (from International Energy Agency) was used in Chapter 5.1 because it is direct (not obtained by calculation) and it comes from a very reliable source. Data source [kg CO2 per MWh] [tons CO2 saved per year] International Energy Agency Calculated from table H.2 Calculated from table H.3 From [Ref. 79], CARMA From [Ref. 80], Kerseens 392 450 513 549 570 2575 2956 3370 3607 3745 Table H.1 – Sensitivity analysis for CO2 savings In conclusion, we can see that the estimated savings would be in a range of [2575 – 3745] tons of CO2 per year. coal 24,92 oil 2,22 gas 62,58 nuclear 4,2 renewables 9,15 other 0,18 TOTAL 103,24 24,14% 870 2,15% 750 60,62% 370 4,07% 0 8,86% 0 0,17% 0 100,00% 450 21,7 1,7 23,2 0,0 0,0 0,0 46,5 Electricity Source generation [TWh] [Ref. 81] share [%] emission rate CO2 emissions [kg CO2 per MWh] [Mtons] [Ref. 66] Table H.2 – Calculation of CO2 emission rate through electricity generation sources Electricity generation CO2 emissions from electricity production Emission rate for Netherlands 103,2 53,0 TWh Mtons CO2 kg CO2/MWh Table H.3 – Calculation of CO2 emission rate through 2007 aggregated figures [Ref 81] 513,4PDF Image | 1MW electricity generation from waste heat port of Rotterdam
