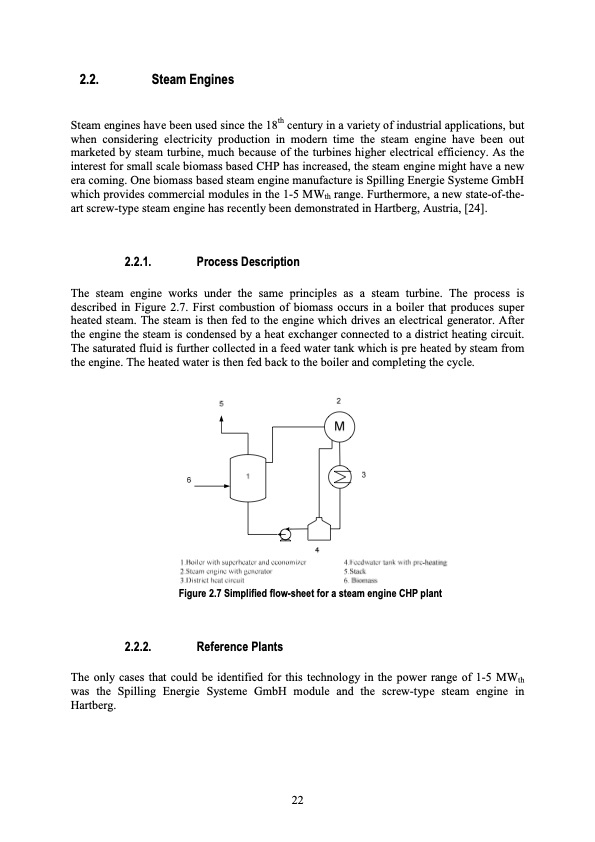

2.2. Steam Engines Steam engines have been used since the 18th century in a variety of industrial applications, but when considering electricity production in modern time the steam engine have been out marketed by steam turbine, much because of the turbines higher electrical efficiency. As the interest for small scale biomass based CHP has increased, the steam engine might have a new era coming. One biomass based steam engine manufacture is Spilling Energie Systeme GmbH which provides commercial modules in the 1-5 MWth range. Furthermore, a new state-of-the- art screw-type steam engine has recently been demonstrated in Hartberg, Austria, [24]. 2.2.1. Process Description The steam engine works under the same principles as a steam turbine. The process is described in Figure 2.7. First combustion of biomass occurs in a boiler that produces super heated steam. The steam is then fed to the engine which drives an electrical generator. After the engine the steam is condensed by a heat exchanger connected to a district heating circuit. The saturated fluid is further collected in a feed water tank which is pre heated by steam from the engine. The heated water is then fed back to the boiler and completing the cycle. Figure 2.7 Simplified flow-sheet for a steam engine CHP plant 2.2.2. Reference Plants The only cases that could be identified for this technology in the power range of 1-5 MWth was the Spilling Energie Systeme GmbH module and the screw-type steam engine in Hartberg. 22PDF Image | Biomass Based Small Scale Combined Heat and Power Tech
