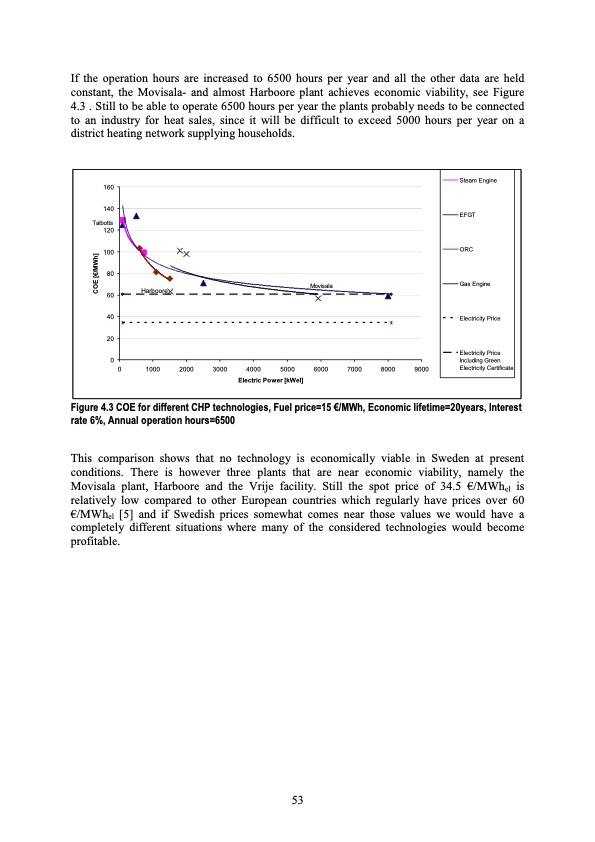

If the operation hours are increased to 6500 hours per year and all the other data are held constant, the Movisala- and almost Harboore plant achieves economic viability, see Figure 4.3 . Still to be able to operate 6500 hours per year the plants probably needs to be connected to an industry for heat sales, since it will be difficult to exceed 5000 hours per year on a district heating network supplying households. 160 140 Talbotts 120 100 80 60 40 20 0 Harboore 1000 2000 Movisala 5000 6000 7000 8000 9000 0 3000 4000 Electric Power [kWel] Steam Engine EFGT ORC Gas Engine Electricity Price Electricity Price Including Green Electricity Certificate Figure 4.3 COE for different CHP technologies, Fuel price=15 €/MWh, Economic lifetime=20years, Interest rate 6%, Annual operation hours=6500 This comparison shows that no technology is economically viable in Sweden at present conditions. There is however three plants that are near economic viability, namely the Movisala plant, Harboore and the Vrije facility. Still the spot price of 34.5 €/MWhel is relatively low compared to other European countries which regularly have prices over 60 €/MWhel [5] and if Swedish prices somewhat comes near those values we would have a completely different situations where many of the considered technologies would become profitable. 53 COE [€/MWh]PDF Image | Biomass Based Small Scale Combined Heat and Power Tech
