PDF Publication Title:
Text from PDF Page: 063

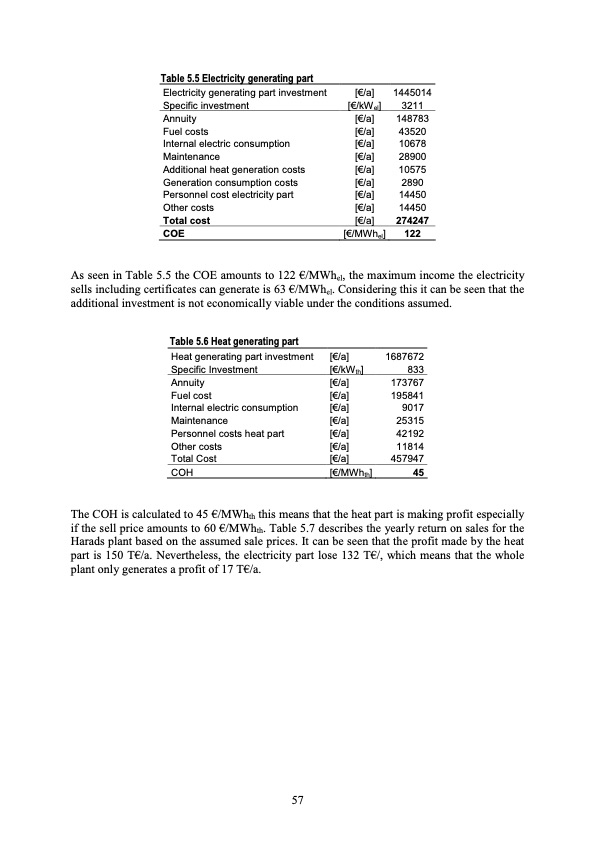

Table 5.5 Electricity generating part Electricity generating part investment Specific investment Annuity Fuel costs Internal electric consumption Maintenance Additional heat generation costs Generation consumption costs Personnel cost electricity part Other costs Total cost COE [€/a] 1445014 [€/kWel] 3211 [€/a] 148783 [€/a] 43520 [€/a] 10678 [€/a] 28900 [€/a] 10575 [€/a] 2890 [€/a] 14450 [€/a] 14450 [€/a] 274247 [€/MWhel] 122 As seen in Table 5.5 the COE amounts to 122 €/MWhel, the maximum income the electricity sells including certificates can generate is 63 €/MWhel. Considering this it can be seen that the additional investment is not economically viable under the conditions assumed. Table 5.6 Heat generating part Heat generating part investment Specific Investment Annuity Fuel cost Internal electric consumption Maintenance Personnel costs heat part Other costs Total Cost COH The COH is calculated to 45 €/MWhth this means that the heat part is making profit especially if the sell price amounts to 60 €/MWhth. Table 5.7 describes the yearly return on sales for the Harads plant based on the assumed sale prices. It can be seen that the profit made by the heat part is 150 T€/a. Nevertheless, the electricity part lose 132 T€/, which means that the whole plant only generates a profit of 17 T€/a. [€/a] 1687672 [€/kWth] 833 [€/a] [€/a] [€/a] [€/a] [€/a] [€/a] [€/a] [€/MWhth] 45 173767 195841 9017 25315 42192 11814 457947 57PDF Image | Biomass Based Small Scale Combined Heat and Power Tech
PDF Search Title:
Biomass Based Small Scale Combined Heat and Power TechOriginal File Name Searched:
LTU_EX_08122_SE.pdfDIY PDF Search: Google It | Yahoo | Bing
